Narrow Opening Fiberglass Bar Grating - Catwalk Grating Solutions

5 0 Reviews

Length: The standard length for fiberglass grating panels is 1200mm, with a customizable range of 500–3000mm to suit your project needs.
Width: Common widths for fiberglass grating are 600mm and 900mm, with a customizable range of 300–1500mm.
Thickness: Multiple thickness options are available for fiberglass grating panels, including 30mm, 38mm, and 50mm.

Quantity:
Availability:





Inquire Add to Basket

Brand:
JunHe

Product Description

Advantages

Exceptional Corrosion Resistance

Unlike traditional metal grating, fiberglass grating is naturally immune to rust and corrosion. This makes it a top choice for settings like chemical plants and wastewater treatment facilities, where exposure to corrosive substances is everyday—proving it a reliable corrosion resistant fiberglass grating option.

Remarkable Strength

Fiberglass grating delivers outstanding strength. Made with high-quality glass fibers, this heavy duty fiberglass grating has impressive load-bearing capacity—specifically, it can hold up to 3000 pounds per square foot. This makes it perfect for applications such as industrial walkways and platforms, where long-term durability of fiberglass grating panels is crucial.

Superior Chemical Resistance

FRP grating (fiberglass reinforced plastic grating) stands up well to a wide range of chemicals, including acids and alkalis. Laboratory tests show this fiberglass grating stays undamaged after being submerged in a 10% sulfuric acid solution for over 1000 hours—making it an ideal pick for chemical plants and wastewater treatment facilities needing effective fiberglass grating solutions.

Slip-Resistant Design

Non-slip fiberglass grating has a textured surface that achieves a friction coefficient as high as 0.6, greatly lowering the chance of slips and falls. This feature is especially important in safety-critical areas like stair treads and walkways in wet conditions, where non-slip fiberglass grating is a necessity.

Lightweight and Durable

Lightweight fiberglass grating is easy to handle yet highly long-lasting. Compared to a steel grating of the same specs, this fiberglass grate weighs just one-fourth as much, while its service life can go beyond 20 years. This mix of light weight and durability simplifies installing fiberglass grating panels and offers long-term cost savings.

Customizable to Fit Specific Needs

Fiberglass grating offers great design flexibility, letting you create tailored fiberglass grating solutions. It can be customized into different sizes and shapes to match a project’s specific requirements—whether it’s a circular opening or a uniquely shaped platform—ensuring a perfect fit for your fiberglass grating use case.

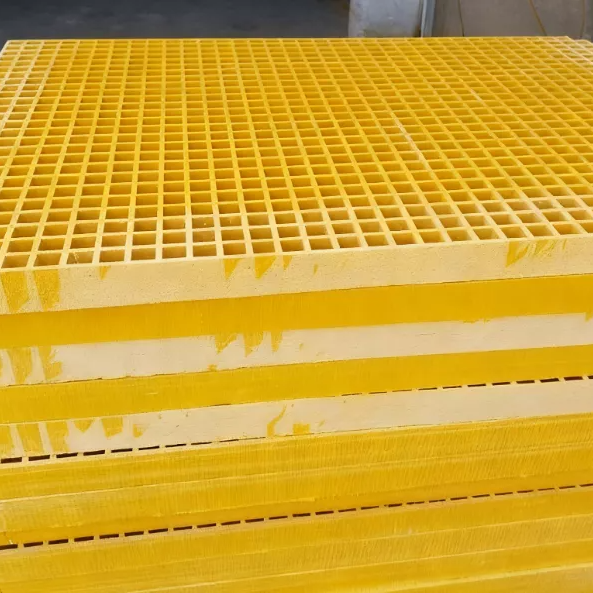

13_593_593

Detailed Parameter Overview

Dimension Specifications

Length: The standard length for fiberglass grating panels is 1200mm, with a customizable range of 500–3000mm to fit your project.
Width: Common widths for fiberglass grating are 600mm and 900mm, with a customizable range of 300–1500mm.
Thickness: Fiberglass grating panels come in multiple thickness options, including 30mm, 38mm, and 50mm.

Load-Bearing Capacity

Uniform Load: For fiberglass grating, uniform load ranges from 3000–5000N/m², depending on thickness and structure—ideal for heavy duty fiberglass grating uses.
Concentrated Load: The single-point concentrated load for FRP grating can reach 1000–2000N, supporting high-demand applications.

Grating Spacing

Crossbar Spacing: Typically 30mm and 40mm for fiberglass bar grating, ensuring stability and performance.
Longitudinal Bar Spacing: Common values are 40mm and 50mm, suitable for both narrow opening fiberglass bar grating and standard designs.

Material Properties

Glass Fiber Content: No less than 70% for high-quality FRP grating and fiberglass grating.
Resin Type: Includes unsaturated polyester resin, vinyl ester resin, etc., for making durable fiberglass grating.
Tensile Strength: No less than 500MPa for reliable fiberglass grate performance.
Bending Strength: No less than 700MPa for sturdy FRP grating applications.

Surface Treatment

Anti-slip Treatment: Non-slip fiberglass grating has a granular anti-slip layer with a friction coefficient of at least 0.6.
Coating Treatment: An anti-corrosion coating can be added to corrosion resistant fiberglass grating, with a salt spray test time of at least 1000 hours.

Fire-Resistant Performance

Fire-Retardant Grade: Fiberglass grating panels meet the UL94-V0 level (flame-retardant grade) for added safety.

Applications

Industrial Platforms

In factory workshops, fiberglass grating panels are widely used to build operating platforms. This heavy duty fiberglass grating can support equipment and workers during operations, while its corrosion-resistant properties stand up to industrial chemicals—ensuring the platform operates stably long-term and boosting work safety and efficiency.

Building Stairs

Non-slip fiberglass grating is also used for building stairs. Its slip-resistant surface effectively cuts down on slip risks. As lightweight fiberglass grating, it simplifies installation, reducing construction difficulty and costs. Plus, its aesthetic appeal and durability make it suitable for various architectural styles.

Sewage Treatment Facilities

In sewage treatment plants, fiberglass grating drainage and drainage fiberglass grating are used for gratings and walkways. This corrosion resistant fiberglass grating handles the highly corrosive sewage environment well, ensuring the facilities operate reliably long-term.

Power Industry Maintenance Walkways

In power substations and other locations, FRP grating is often used for maintenance walkways. This fiberglass grating is insulating and strong, keeping maintenance personnel safe. Even in severe weather, it can stably support the weight of people walking on it.

Offshore Operation Platforms

The offshore environment is extremely harsh, but fiberglass grating is well-suited for offshore operation platforms. As a leading fiberglass grating supplier and fiberglass grating manufacturer, our products resist seawater corrosion and UV rays, withstand wave impacts and equipment pressure, and provide a safe, stable workspace for offshore operations—including fiberglass catwalk grating solutions.

FAQ：

1. What is the lifespan of FIBERGLASS GRATING?

Under normal conditions, its lifespan can reach over 20 years. This is due to its corrosion - resistant materials and stable structure, ensuring long - term use without significant degradation.

2. Can FIBERGLASS GRATING be customized?

Absolutely. We offer customization services. You can tell us your specific requirements regarding size, shape, and surface treatment. Our team will tailor the product to meet your needs precisely.

3. How do you ensure the quality of FIBERGLASS GRATING?

We have strict quality control processes. Raw materials are carefully selected, and each production step is monitored. Products undergo multiple tests, like load - bearing and corrosion resistance tests, to guarantee high - quality output.
