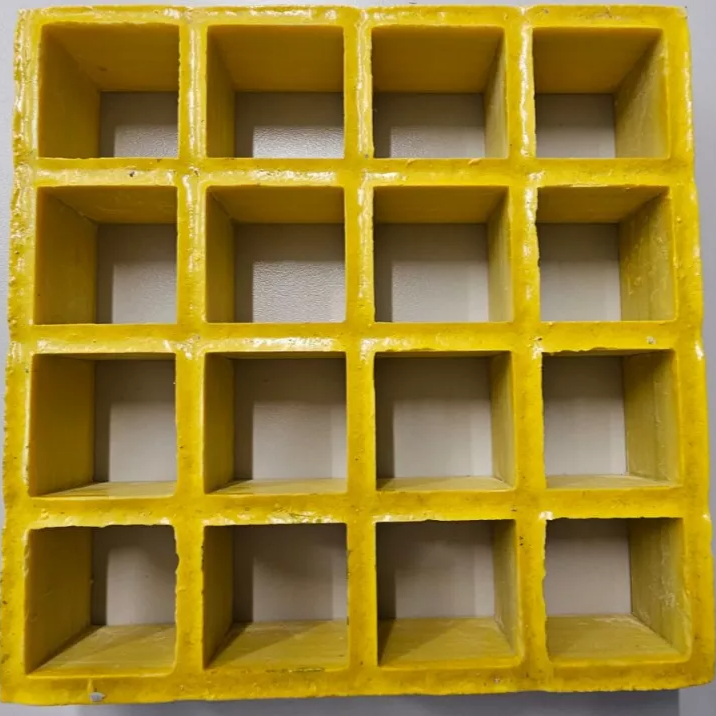

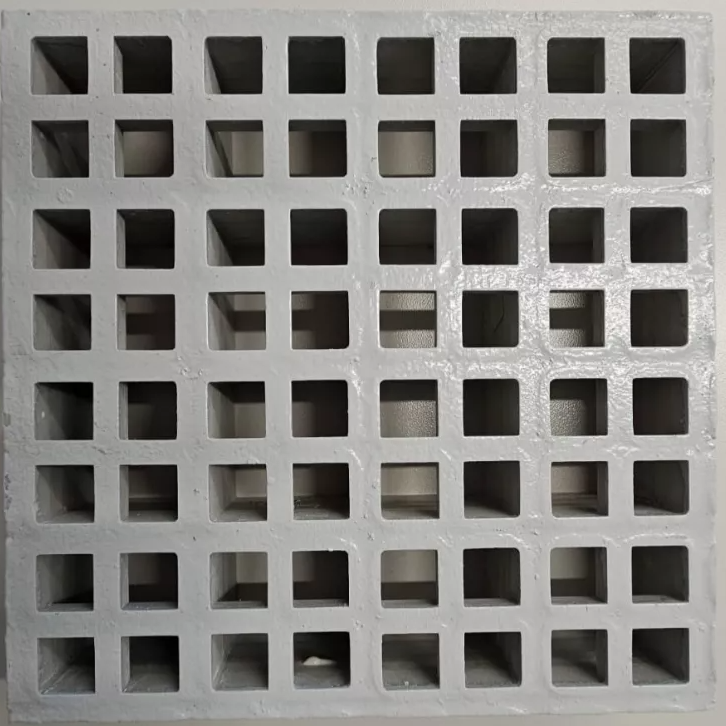

Lightweight Fiberglass Grating Panels for Drainage - China FRP Grating Supplier

5 0 Reviews

Dimension Specifications
Length: The standard length is 1200mm, with a customizable range of 500–3000mm.
Width: Common widths are 600mm and 900mm, and the customizable range is 300–1500mm.
Thickness: Various thickness options are available, including 30mm, 38mm, and 50mm.
Load-Bearing Capacity
Uniform Load: Ranges from 3000–5000N/m², depending on the thickness and structure.
Concentrated Load: The single-point concentrated load can reach 1000–2000N.
Grating Spacing
Crossbar Spacing: Typically 30mm and 40mm.
Longitudinal Bar Spacing: Common values are 40mm and 50mm.

Quantity:
Availability:





Inquire Add to Basket

Brand:
JunHe

Product Description

Advantages

Exceptional Corrosion Resistance

Unlike traditional metal grating, fiberglass grating is naturally immune to rust and corrosion. This makes it an excellent choice for environments such as chemical plants and wastewater treatment facilities—where exposure to corrosive substances is common—solidifying its reputation as a top-tier corrosion resistant fiberglass grating.

Remarkable Strength

Fiberglass grating delivers outstanding strength performance. Crafted with high-quality glass fibers, this heavy duty fiberglass grating boasts impressive load-bearing capacity—specifically, it can support up to 3000 pounds per square foot. This makes it highly suitable for applications like industrial walkways and platforms, where long-term durability of fiberglass grating panels is a must.

Superior Chemical Resistance

FRP grating (fiberglass reinforced plastic grating) offers excellent resistance to a wide spectrum of chemicals, including acids and alkalis. Laboratory tests have proven that fiberglass grating remains undamaged after being submerged in a 10% sulfuric acid solution for over 1000 hours. This property makes it an ideal option for chemical plants and wastewater treatment facilities in need of reliable fiberglass grating solutions.

Slip-Resistant Design

Non-slip fiberglass grating features a surface engineered for slip resistance. Its textured finish achieves a friction coefficient as high as 0.6, which significantly cuts down on the risk of slips and falls. This feature is particularly vital in safety-critical areas like stair treads and walkways in wet conditions, where non-slip fiberglass grating is indispensable.

Lightweight and Durable

Lightweight fiberglass grating is easy to handle yet highly durable. Compared to a steel grating of the same specifications, this fiberglass grate weighs only one-fourth as much, while its service life can surpass 20 years. This blend of light weight and durability simplifies the installation of fiberglass grating panels and provides long-term cost-effectiveness.

Customizable to Fit Specific Needs

Fiberglass grating offers a high degree of design flexibility, allowing for tailored fiberglass grating solutions. It can be customized into different sizes and shapes to meet the specific requirements of any project—whether it’s a circular opening or a uniquely shaped platform—ensuring a perfect fit for your fiberglass grating application.

Detailed Parameter Overview

Dimension Specifications for Fiberglass Grating Panels

Length: The standard length for fiberglass grating panels is 1200mm, with a customizable range of 500–3000mm to suit your project needs.
Width: Common widths for fiberglass grating are 600mm and 900mm, with a customizable range of 300–1500mm.
Thickness: Multiple thickness options are available for fiberglass grating panels, including 30mm, 38mm, and 50mm.

Load-Bearing Capacity of Heavy Duty Fiberglass Grating

Uniform Load: For fiberglass grating, the uniform load ranges from 3000–5000N/m², depending on thickness and structure—ideal for heavy duty fiberglass grating applications.
Concentrated Load: The single-point concentrated load for FRP grating can reach 1000–2000N, supporting its use in high-demand scenarios.

Grating Spacing for Fiberglass Bar Grating

Crossbar Spacing: Typically 30mm and 40mm for fiberglass bar grating, ensuring stability and reliable performance.
Longitudinal Bar Spacing: Common values are 40mm and 50mm, suitable for both narrow opening fiberglass bar grating and standard designs.

Material Properties of FRP Grating

Glass Fiber Content: No less than 70% for high-quality FRP grating and fiberglass grating.
Resin Type: Includes unsaturated polyester resin, vinyl ester resin, etc., for durable fiberglass grating production.
Tensile Strength: No less than 500MPa for reliable fiberglass grate performance.
Bending Strength: No less than 700MPa for sturdy FRP grating applications.

Surface Treatment for Non-Slip Fiberglass Grating

Anti-slip Treatment: Non-slip fiberglass grating is equipped with a granular anti-slip layer, boasting a friction coefficient of at least 0.6.
Coating Treatment: An anti-corrosion coating can be applied to corrosion resistant fiberglass grating, with a salt spray test time of at least 1000 hours.

Fire-Resistant Performance of Fiberglass Grating

Fire-Retardant Grade: Fiberglass grating panels meet the UL94-V0 level (flame-retardant grade) for enhanced safety.

Applications of Fiberglass Grating & FRP Grating

Industrial Platforms with Fiberglass Grating Panels

In factory workshops, fiberglass grating panels are widely used to build operating platforms. This heavy duty fiberglass grating can support equipment and workers during operations, while its corrosion-resistant properties stand up to industrial chemicals—ensuring the long-term stable operation of the platform and boosting work safety and efficiency.

Building Stairs with Non-Slip Fiberglass Grating

Non-slip fiberglass grating is perfect for building stairs. Its slip-resistant surface reduces fall risks, and as lightweight fiberglass grating, it simplifies installation—lowering construction difficulty and costs. Its aesthetic appeal and durability also make it suitable for various architectural styles.

Sewage Treatment Facilities with Fiberglass Grating Drainage

In sewage treatment plants, fiberglass grating drainage and drainage fiberglass grating are used for gratings and walkways. This corrosion resistant fiberglass grating withstands the highly corrosive sewage environment, ensuring the long-term reliable operation of the facilities.

Power Industry Maintenance Walkways with FRP Grating

In power substations and other locations, FRP grating is often used for maintenance walkways. This fiberglass grating offers insulation and high strength, guaranteeing the safety of maintenance personnel. Even in severe weather conditions, it can stably support the weight of people walking on it.

Offshore Operation Platforms with FRP Grating China

The harsh offshore environment calls for durable FRP grating China supplies. As a leading fiberglass grating supplier and fiberglass grating manufacturer, our fiberglass grating resists seawater corrosion and ultraviolet rays, withstands wave impacts and equipment pressure, and provides a safe, stable working space for offshore operations—including reliable fiberglass catwalk grating solutions.

FAQ：

1. What is the lifespan of FIBERGLASS GRATING?

Under normal conditions, its lifespan can reach over 20 years. This is due to its corrosion - resistant materials and stable structure, ensuring long - term use without significant degradation.

2. Can FIBERGLASS GRATING be customized?

Absolutely. We offer customization services. You can tell us your specific requirements regarding size, shape, and surface treatment. Our team will tailor the product to meet your needs precisely.

3. How do you ensure the quality of FIBERGLASS GRATING?

We have strict quality control processes. Raw materials are carefully selected, and each production step is monitored. Products undergo multiple tests, like load - bearing and corrosion resistance tests, to guarantee high - quality output.
