Unlike traditional metal grating, fiberglass is inherently resistant to rust and corrosion. This quality makes it an outstanding choice for settings such as chemical plants and wastewater treatment facilities, where frequent exposure to corrosive substances is inevitable.
Crafted from high - quality glass fibers, fiberglass grating exhibits impressive load - bearing capabilities. It can support up to 3000 pounds per square foot, making it ideal for industrial walkways and platforms that require long - term durability.
The grating shows excellent resistance to a broad spectrum of chemicals, including acids and alkalis. Laboratory tests reveal that it remains unscathed after being immersed in a 10% sulfuric acid solution for over 1000 hours, making it perfect for chemical - intensive environments.
The surface of fiberglass grating is engineered to be slip - resistant, with a friction coefficient as high as 0.6. This significantly reduces the risk of slips and falls, especially in safety - crucial areas like stair treads and wet walkways.
Fiberglass grating is lightweight yet highly robust. Compared to a steel grating of the same specifications, it weighs only a quarter as much and can last over 20 years. This combination simplifies installation and offers long - term cost savings.
It offers high design flexibility and can be tailored to different sizes and shapes based on project requirements. Whether it's a circular hole or a uniquely shaped platform, it can be adapted to fit perfectly.
Length: The standard length is 1200mm, with a customizable range of 500 - 3000mm.
Width: Common widths are 600mm and 900mm, and the customizable range is 300 - 1500mm.
Thickness: Options include 30mm, 38mm, and 50mm.
Uniform Load: Ranges from 3000 - 5000N/m², depending on thickness and structure.
Concentrated Load: The single - point concentrated load can reach 1000 - 2000N.
Crossbar Spacing: Usually 30mm and 40mm.
Longitudinal Bar Spacing: Common values are 40mm and 50mm.
Glass Fiber Content: No less than 70%.
Resin Type: Includes unsaturated polyester resin and vinyl ester resin.
Tensile Strength: No less than 500MPa.
Bending Strength: No less than 700MPa.
Anti - slip Treatment: The surface has a granular anti - slip layer with a friction coefficient of at least 0.6.
Coating Treatment: An anti - corrosion coating can be applied, with a salt spray test time of at least 1000 hours.
Fire - Retardant Grade: Achieves the UL94 - V0 level (flame - retardant grade).

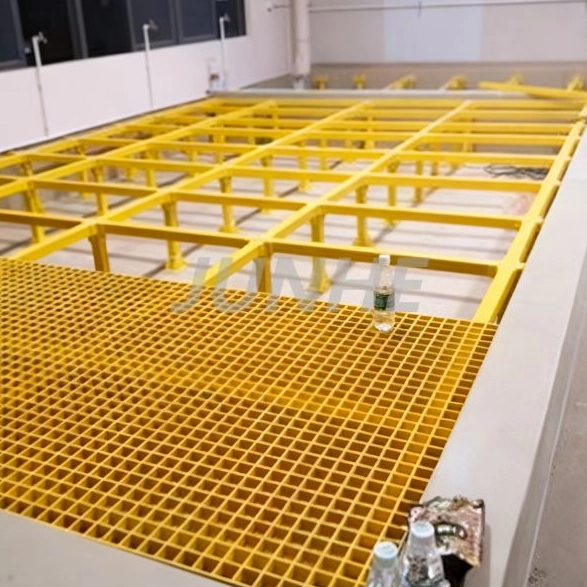

In factory workshops, fiberglass grating is widely used to build operating platforms. Its high strength can support equipment and workers during operations, while its corrosion - resistant properties enable it to endure chemical substances in the industrial setting, ensuring long - term stable platform operation and enhancing work safety and efficiency.
Fiberglass grating is also used in building stairs. Its slip - resistant surface reduces the risk of slips. The lightweight material simplifies installation, cutting construction difficulty and cost. Additionally, its aesthetic appeal and durability make it suitable for various architectural styles.
In sewage treatment plants, fiberglass grating is used for gratings and walkways. Its excellent resistance to acids and alkalis allows it to function effectively in the highly corrosive sewage environment, ensuring the long - term reliable operation of the facilities.
In power substations and other locations, fiberglass grating is often used for maintenance walkways. It is insulating and has high strength, ensuring the safety of maintenance personnel. Even in harsh weather, it can stably support the weight of people walking.
The offshore environment is extremely challenging, but fiberglass grating is well - suited for offshore operation platforms. It is resistant to seawater corrosion and ultraviolet rays, and can withstand ocean wave impacts and the heavy pressure of equipment, providing a safe and stable working space for offshore operations.
1. What is the lifespan of FIBERGLASS GRATING?
Under normal conditions, its lifespan can reach over 20 years. This is due to its corrosion - resistant materials and stable structure, ensuring long - term use without significant degradation.
2. Can FIBERGLASS GRATING be customized?
Absolutely. We offer customization services. You can tell us your specific requirements regarding size, shape, and surface treatment. Our team will tailor the product to meet your needs precisely.
3. How do you ensure the quality of FIBERGLASS GRATING?
We have strict quality control processes. Raw materials are carefully selected, and each production step is monitored. Products undergo multiple tests, like load - bearing and corrosion resistance tests, to guarantee high - quality output.
