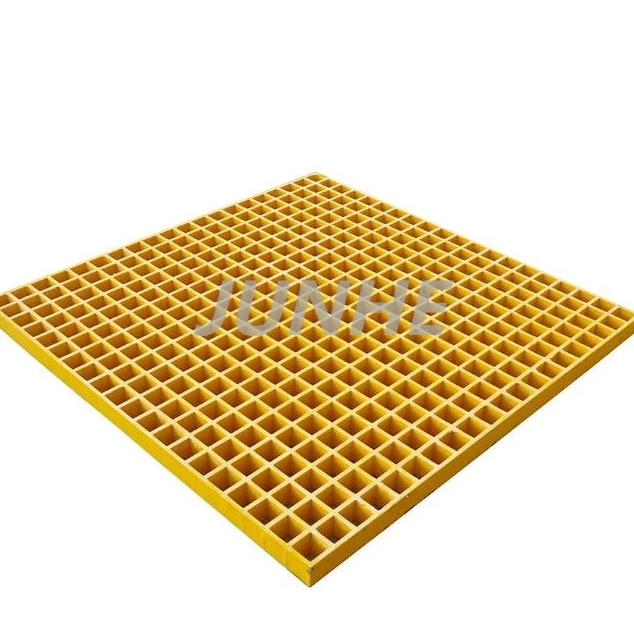

Unlike traditional metal grating, fiberglass is inherently resistant to rust and corrosion. This characteristic makes it a top - notch choice for areas like chemical plants and wastewater treatment facilities, where exposure to corrosive substances is frequent.
Fiberglass grating has outstanding strength properties. Made from high - quality glass fibers, it has an impressive load - bearing capacity, supporting up to 3000 pounds per square foot. This makes it ideal for industrial walkways and platforms that require long - lasting durability.
The grating shows excellent resistance to a wide range of chemicals, including acids and alkalis. Lab tests indicate that it remains intact after being immersed in a 10% sulfuric acid solution for over 1000 hours. This makes it a perfect fit for chemical plants and wastewater treatment sites.

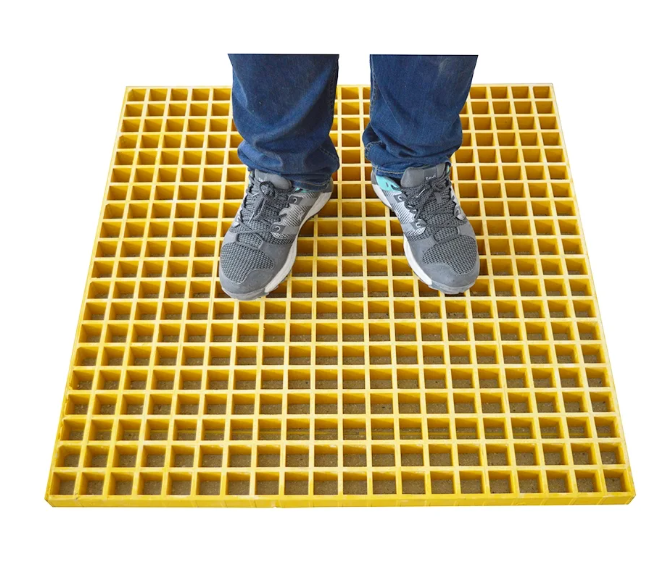

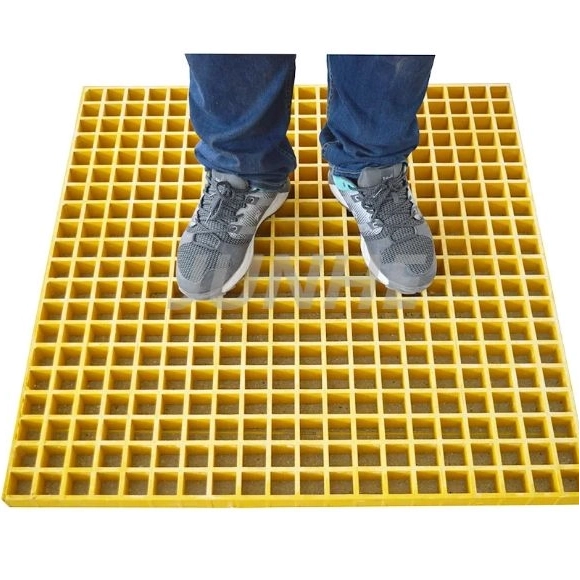

The surface of fiberglass grating is designed to prevent slips. Its texture gives it a friction coefficient as high as 0.6, greatly reducing the chance of slips and falls. This is especially crucial in safety - sensitive areas like stair treads and wet walkways.
Fiberglass grating is both lightweight and highly durable. Compared to a steel grating of the same specifications, it weighs only a quarter as much and can last more than 20 years. This combination makes installation easier and offers long - term cost savings.

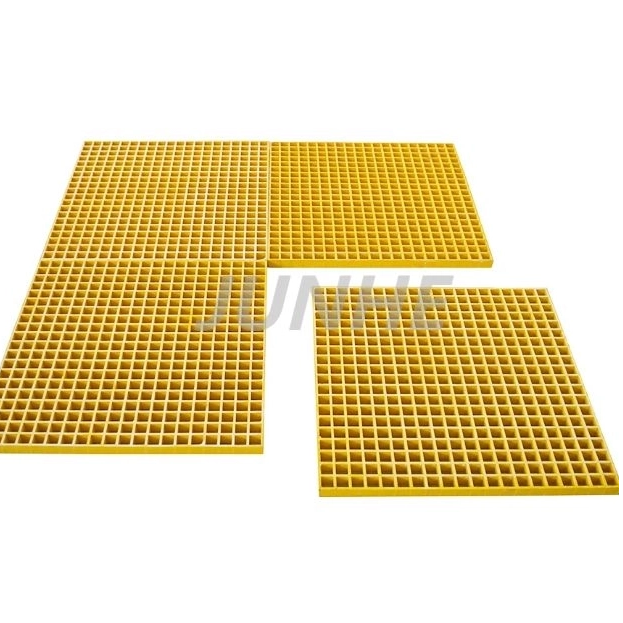

The grating offers great design flexibility. It can be tailored to different sizes and shapes based on project requirements. Whether it's a circular hole or a uniquely shaped platform, it can be adapted to fit precisely.
Length: The standard length is 1200mm, with a customizable range of 500 - 3000mm.
Width: Common widths are 600mm and 900mm, and the customizable range is 300 - 1500mm.
Thickness: Options include 30mm, 38mm, and 50mm.
Uniform Load: Ranges from 3000 - 5000N/m², depending on thickness and structure.
Concentrated Load: The single - point concentrated load can reach 1000 - 2000N.
Crossbar Spacing: Usually 30mm and 40mm.
Longitudinal Bar Spacing: Common values are 40mm and 50mm.
Glass Fiber Content: Not less than 70%.
Resin Type: Includes unsaturated polyester resin and vinyl ester resin.
Tensile Strength: Not less than 500MPa.
Bending Strength: Not less than 700MPa.
Anti - slip Treatment: The surface has a granular anti - slip layer with a friction coefficient of at least 0.6.
Coating Treatment: An anti - corrosion coating can be applied, with a salt spray test time of at least 1000 hours.
Fire - Retardant Grade: Achieves the UL94 - V0 level (flame - retardant grade).

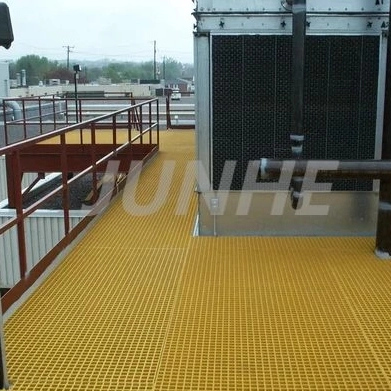

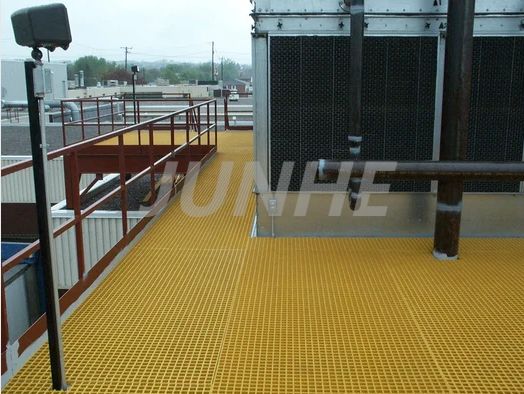

In factory workshops, fiberglass grating is widely used to build operating platforms. Its high strength can support equipment and workers during operations, and its corrosion - resistant nature helps it endure chemical substances in the industrial setting. This ensures the platform's long - term stable operation, improving work safety and efficiency.
Fiberglass grating is also used in building stairs. Its slip - resistant surface effectively lowers the risk of slips. The lightweight material simplifies installation, reducing construction difficulty and cost. Moreover, its aesthetic appeal and durability make it suitable for various architectural styles.
In sewage treatment plants, fiberglass grating is used for gratings and walkways. Its excellent resistance to acids and alkalis allows it to function well in the highly corrosive sewage environment, ensuring the long - term reliable operation of the facilities.
In power substations and other places, fiberglass grating is often used for maintenance walkways. It is insulating and has high strength, ensuring the safety of maintenance personnel. Even in harsh weather, it can stably support the weight of people walking.
The offshore environment is extremely tough, but fiberglass grating is well - suited for offshore operation platforms. It is resistant to seawater corrosion and ultraviolet rays, and can withstand ocean wave impacts and the heavy pressure of equipment, providing a safe and stable working space for offshore operations.
1. What is the lifespan of FIBERGLASS GRATING?
Under normal conditions, its lifespan can reach over 20 years. This is due to its corrosion - resistant materials and stable structure, ensuring long - term use without significant degradation.
2. Can FIBERGLASS GRATING be customized?
Absolutely. We offer customization services. You can tell us your specific requirements regarding size, shape, and surface treatment. Our team will tailor the product to meet your needs precisely.
3. How do you ensure the quality of FIBERGLASS GRATING?
We have strict quality control processes. Raw materials are carefully selected, and each production step is monitored. Products undergo multiple tests, like load - bearing and corrosion resistance tests, to guarantee high - quality output.
