Views: 0 Author: Site Editor Publish Time: 2026-07-23 Origin: Site
Water, loose soil, and unstable slopes can quickly damage roads, riverbanks, and construction areas. A Gabion solves this problem by holding stone inside a strong wire mesh container, creating a heavy but permeable structure that resists erosion, supports soil, and allows drainage. Anping Junhe Metal Products Co., Ltd. manufactures gabion products for river protection, retaining walls, slope stabilization, landscaping, and civil engineering projects worldwide.
The main purpose of a gabion is to contain stone in a stable shape so the finished structure can resist soil pressure, reduce erosion, and protect surfaces from moving water.
Loose stone can shift or wash away. A wire basket keeps the fill material together while allowing the stones to settle naturally. Multiple baskets can be connected to form a retaining wall, riverbank lining, drainage structure, or slope protection system.
Gabions are widely used where soil needs support. Filled baskets create enough weight to resist movement, making them suitable for road embankments, slopes, bridge approaches, and changes in ground level.
When stacked, the baskets form a gravity retaining wall. The stone mass supports the soil, while the spaces between the stones allow water to drain.
Foundation preparation, wall dimensions, and basket placement remain important, especially for taller retaining structures.
Flowing water can remove soil from riverbanks, drainage channels, and areas around culverts. Gabion baskets protect the ground by placing a durable stone layer between the water and exposed soil.
Water moves through and around the stones instead of striking the bank directly. The rough surface also slows the flow and spreads its force over a wider area.
This makes gabions useful for riverbank protection, drainage outlets, channel lining, and erosion control around hydraulic structures.
Gabion systems are more flexible than many rigid walls. They can tolerate limited settlement or ground movement without immediately losing their protective function.
This flexibility is useful on uneven terrain and in areas where soil conditions may change over time. Connected baskets can move slightly together while continuing to protect the surface.
Gabions control erosion by covering vulnerable soil, slowing water movement, and stabilizing the ground.
The irregular surface of the stone interrupts the path of flowing water. Instead of moving smoothly over exposed soil, water must pass around many obstacles.
This reduces direct impact and limits the amount of soil carried away. Gabions are often placed at river bends, channel edges, drainage outlets, and the base of slopes where erosion is concentrated.
A gabion wall is naturally permeable. Water can pass through the gaps between the stones instead of building pressure behind the structure.
This helps reduce hydrostatic pressure and supports better soil stability. A geotextile layer can be placed behind the gabion to retain fine soil while allowing water to drain.
Individual baskets are joined with lacing wire, spirals, rings, or other fasteners. Once connected, the system behaves as a larger protective structure.
Internal diaphragms divide long baskets into smaller cells. These sections help control stone movement and maintain the basket shape.
Gabions are mainly used where soil, water, and surface movement must be controlled.
Gabion baskets protect riverbanks from changing water levels and continuous flow. Gabion mattresses are often installed across wider, lower surfaces such as channel beds and gentle slopes.
Around culverts and drainage outlets, the stone surface absorbs the force of discharged water and reduces local scour.
Stacked gabions can support soil along roads, industrial sites, residential developments, and landscape projects.
Their weight creates a stable wall, while the open structure allows drainage. The visible stone face also gives the wall a natural appearance that blends with the surroundings.
Gabions are used around road embankments, bridge approaches, railway slopes, pipelines, and construction access routes.
They help stabilize soil, guide runoff, and protect areas around drainage structures. Custom basket sizes allow the system to fit irregular ground and existing infrastructure.
Welded gabion boxes are also used for garden walls, property divisions, benches, and decorative features.
Their rigid panels create straight edges and a regular shape. Stone color, size, and placement can be selected to achieve a cleaner visual result.
Application | Main Purpose | Suitable Product | Important Detail |
Riverbank protection | Reduce erosion | Hexagonal gabion basket | Wire coating and connections |
Channel lining | Protect against scour | Gabion mattress | Anchoring and ground preparation |
Retaining wall | Support soil and drainage | Stacked gabion boxes | Foundation and wall size |
Road embankment | Stabilize slopes | Gabion box or mattress | Drainage and soil conditions |
Landscape wall | Create a stable visible structure | Welded gabion box | Stone size and panel alignment |
Temporary protection | Contain soil or aggregate | Defensive barrier | Liner and cell connection |
Different gabion designs serve different applications.
Hexagonal gabion boxes are made from double-twisted woven wire mesh. Their flexible structure allows them to adapt to uneven ground and limited settlement.
They are commonly used for river protection, retaining walls, slopes, and hydraulic projects. Internal diaphragms help prevent stone from shifting through the full length of the basket.

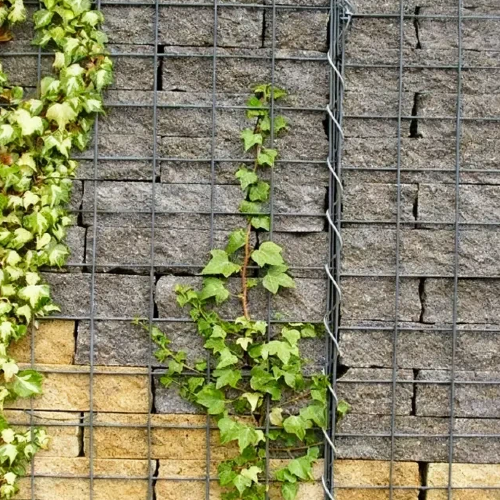

Welded gabions are made from rigid wire mesh panels. They create straight edges and a more uniform rectangular shape.
This makes them suitable for garden walls, architectural features, seating structures, and visible retaining applications. Internal braces may be added to reduce bulging during filling.
Gabion mattresses are lower and wider than standard baskets. They cover large surfaces while following the shape of the ground.
They are often used on channel beds, riverbanks, drainage routes, and areas exposed to surface erosion.

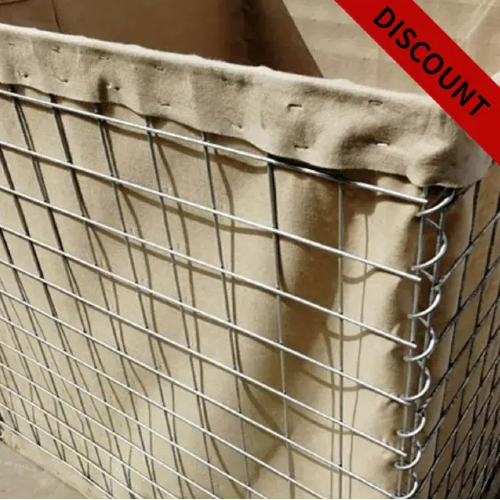

Defensive barriers combine wire mesh cells with a fabric liner. The cells are filled with sand, soil, or aggregate.
They can be used for flood control, temporary protection, and site security. Their purpose differs from traditional stone-filled retaining gabions.
A gabion works properly only when the mesh, stone, connections, and foundation are suitable for the project.
Gabion mesh is commonly made from galvanized steel wire or zinc-aluminum-coated wire. Protective coatings help reduce corrosion in wet and outdoor environments.
PVC coating may provide additional protection where the baskets face persistent moisture or more aggressive conditions.
The stone must be larger than the mesh opening so it cannot fall through. It should also be durable enough to resist weathering and water movement.
Angular stone is often preferred because the pieces lock together more effectively. Visible faces can be arranged by hand for a cleaner finish.
Adjacent baskets should be connected firmly so the finished structure acts as one system.
The base should be level, compact, and strong enough to support the filled weight. Poor ground preparation can lead to uneven settlement and panel distortion.
Anping Junhe Metal Products Co., Ltd. manufactures and supplies gabion products for erosion control, infrastructure, landscaping, and protective applications.
Junhe’s product range includes hexagonal gabion boxes, welded gabion boxes, gabion mattresses, and defensive barriers. Basket size, mesh opening, wire diameter, coating, diaphragms, and connection accessories can be customized according to project drawings.
For river and slope work, flexible woven gabions help control water and soil movement. For landscape and architectural projects, welded gabion panels provide straighter lines and a more regular appearance.
Custom manufacturing allows the product to match site dimensions, stone size, exposure conditions, and installation requirements.
Anping Junhe Metal Products Co., Ltd. supplies gabion systems that protect riverbanks, stabilize slopes, support soil, and improve drainage in demanding environments. With customizable dimensions, mesh openings, wire coatings, and accessories, Junhe can match different civil engineering and landscape requirements. Contact us to discuss your project and request a tailored Hexagonal Gabion Box solution.
A gabion contains stone in a stable wire structure. It is used to control erosion, support soil, improve drainage, and protect slopes or riverbanks.
Yes. Water passes through the spaces between the stones, helping reduce pressure behind the wall.
The stone should be durable and larger than the mesh opening. Angular stone is often used because it locks together well.
Welded gabions use rigid panels and create straighter surfaces. Woven gabions use flexible double-twisted mesh and adapt better to uneven ground.
