Drainage grating systems are vital components in modern drainage systems, particularly in urban infrastructure, commercial spaces, and industrial facilities. These systems are designed to channel water efficiently, preventing flooding and waterlogging. However, like any other part of a drainage system, drainage grating is susceptible to clogging, which can severely affect the overall drainage performance.
Proper installation plays a critical role in maintaining the efficiency of drainage grates. In this article, we will provide a thorough guide on how to prevent clogging of drainage grating during installation and how to ensure long-term functionality.

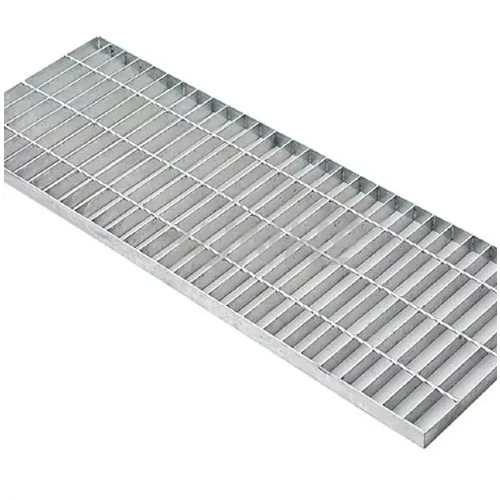

Drainage grating refers to a metal or synthetic mesh designed to cover drainage systems such as drains, trenches, and gutters. These grates are often made from materials like stainless steel, galvanized steel, or cast iron, and they are installed to allow water to flow through while preventing larger debris from entering the drainage system.
Drainage grates come in various sizes, shapes, and materials to suit different environmental conditions and loading requirements. Their primary function is to direct water flow efficiently while protecting the drainage system from the buildup of debris.
The type of drainage grating you choose depends on the specific application. Here are some of the most commonly used types:
Stainless Steel Grating: Known for its durability and resistance to corrosion, it is often used in highly corrosive environments.
Galvanized Steel Grating: This cost-effective material is ideal for general applications where corrosion is not a major concern.
Cast Iron Grating: Provides heavy-duty support for areas with high traffic or significant weight loads.
Plastic Grating: A lightweight and cost-effective option for areas with low traffic, such as residential properties or light commercial areas.
Each material has its own set of advantages, and it is crucial to select the one that fits your specific needs.
One of the most prevalent causes of clogging in drainage grating systems is the accumulation of debris. Organic materials such as leaves, twigs, grass, trash, and other particulate matter can easily become trapped on the surface or within the openings of the grates. Over time, these materials build up, blocking the flow of water and decreasing the overall efficiency of the drainage system. This is particularly problematic during autumn when falling leaves and debris are most abundant. If not regularly cleaned, this accumulation can lead to stagnant water, potential flooding, and even structural damage to the drainage system.
Sedimentation is another significant contributor to clogging. Over time, sediments like sand, mud, and other fine particles can settle within the drainage system, especially in areas with high water flow. These materials accumulate and form blockages that can restrict water flow or completely obstruct the system. In areas where the grading of the drainage trench is not properly managed, sedimentation can be accelerated. Additionally, infrequent cleaning or maintenance of the drainage grates can result in a gradual buildup of these particles, exacerbating the issue.
Plant roots are another common cause of drainage grating clogging, particularly in outdoor or landscaped areas. Certain plant species, especially trees and shrubs, have deep and widespread root systems that can penetrate the drainage grates and infiltrate the drainage pipes below. As the roots grow, they can obstruct the water flow, causing significant blockages. Over time, this root intrusion can damage the drainage pipes and weaken the entire system, potentially leading to costly repairs.
Improper installation of drainage grates is also a significant cause of clogging issues. If the grates are not installed with the proper slope or are misaligned, the water flow can become restricted, and debris may accumulate more easily. Additionally, if the grates are not securely fixed in place, they may shift over time, creating gaps that allow debris to enter the system. Poor installation practices, such as incorrect material choice or improper spacing, can also contribute to inefficiency and clogging in the long run.
The first step to preventing clogging is selecting the right type of drainage grating for your specific environment. This involves considering factors such as:
Environmental Conditions: Choose a material that suits the environment where the grating will be installed. For example, stainless steel is highly recommended for areas exposed to moisture, saltwater, or chemicals, while galvanized steel works well in less aggressive environments.
Load Requirements: Ensure that the grating you select can handle the expected load. Areas with heavy vehicle traffic will require heavy-duty grates, such as cast iron grating or high-strength steel options.
The correct installation angle and slope of the drainage system are crucial to ensuring the efficient flow of water. If the grating is not positioned at the proper angle, water will pool or flow inefficiently, leading to clogging over time.
The standard recommended slope for a drainage system is between 1% to 2%. This ensures that the water flows towards the drainage grates and avoids standing water, which can contribute to debris accumulation.
Before installing drainage grating, ensure that the drainage trench or channel is clear of debris, vegetation, and any other obstructions. Clearing the area of any existing blockages will reduce the risk of clogging in the future.
Additionally, ensure that the drainage pipe or channel is free from any construction waste or dirt that could obstruct water flow. Pre-installation maintenance also includes checking that the drainage pipes are connected correctly and that there are no leaks.
One of the most effective ways to prevent clogging is by incorporating filters or mesh layers beneath the drainage grating. These filters capture smaller particles that might otherwise enter the drainage system, such as dust, dirt, and small debris.
Type of Mesh | Material | Application |
Fiberglass Mesh | Durable and resistant to water damage | Ideal for outdoor drainage systems |
Polypropylene Mesh | Lightweight and cost-effective | Suitable for residential drainage |
Stainless Steel Mesh | Long-lasting and corrosion-resistant | Best for industrial and heavy-duty applications |
These mesh layers should be inspected regularly and cleaned or replaced to ensure they do not become clogged themselves.
Proper securing and alignment of the drainage grating are critical to preventing clogging. If the grates are not securely fixed in place, debris may enter through gaps, causing blockages over time.
Ensure that the grates are properly aligned with the drainage system and are tightly secured to prevent them from shifting during use.
Even the best-installed drainage grates require regular maintenance to prevent clogging over time. Here are some maintenance tips to ensure long-term efficiency:
Routine cleaning is essential to prevent debris from accumulating and obstructing the water flow. Depending on the environment, cleaning should be performed monthly or seasonally.
How to Clean: Use a broom, rake, or pressure washer to remove debris from the surface of the grating. If necessary, remove the grates and clean them thoroughly.
Over time, sediment can accumulate within the drainage system. It is important to periodically inspect the drainage channels for sediment and clear it out to maintain proper water flow.
Occasionally check the drainage system to ensure that water flows freely through the grates. If you notice pooling or slow drainage, this may indicate that a clog is forming.
If your drainage system uses filters or mesh layers, make sure to replace or clean them regularly. Clogged filters can restrict water flow and contribute to clogging in the drainage system.
In conclusion, preventing clogging in drainage grating systems begins with proper installation, which includes selecting the right materials, ensuring the correct slope, and incorporating filters or mesh layers. Regular maintenance and inspections are equally crucial to maintaining the system's long-term efficiency and preventing blockages. By following these best practices, you can keep your drainage grating systems clear of obstructions, ensuring reliable performance and effective water management.
At Anping Junhe Metal Products Co., Ltd., we specialize in providing high-quality drainage grating solutions tailored to meet the specific needs of various industries. Our products are designed for durability, efficiency, and ease of maintenance, ensuring optimal drainage performance. For more information or to discuss your project requirements, we invite you to contact us. Our team is ready to assist you in selecting the perfect drainage solutions for your needs, ensuring that your systems remain free from clogging and continue to perform at their best.
Drainage grating is typically made from stainless steel, galvanized steel, cast iron, and plastic. Each material is suited to specific environments, such as stainless steel for highly corrosive areas and cast iron for heavy-duty applications.
It is recommended to clean drainage grating at least once a month, especially in areas with heavy vegetation or debris. During the fall or rainy season, cleaning may be required more frequently.
Yes, most manufacturers offer customization options for drainage grating, including specific sizes, shapes, and material choices to meet the needs of various drainage applications.
If your drainage grating becomes clogged, remove any visible debris and inspect the drainage channel for any blockages. You may need to clean or replace filters and mesh layers or consult a professional for more severe clogs.
Yes, plants can sometimes grow through drainage grating, especially in outdoor installations where the grating is exposed to soil. Using root barriers and regularly maintaining the area can help prevent this issue.
