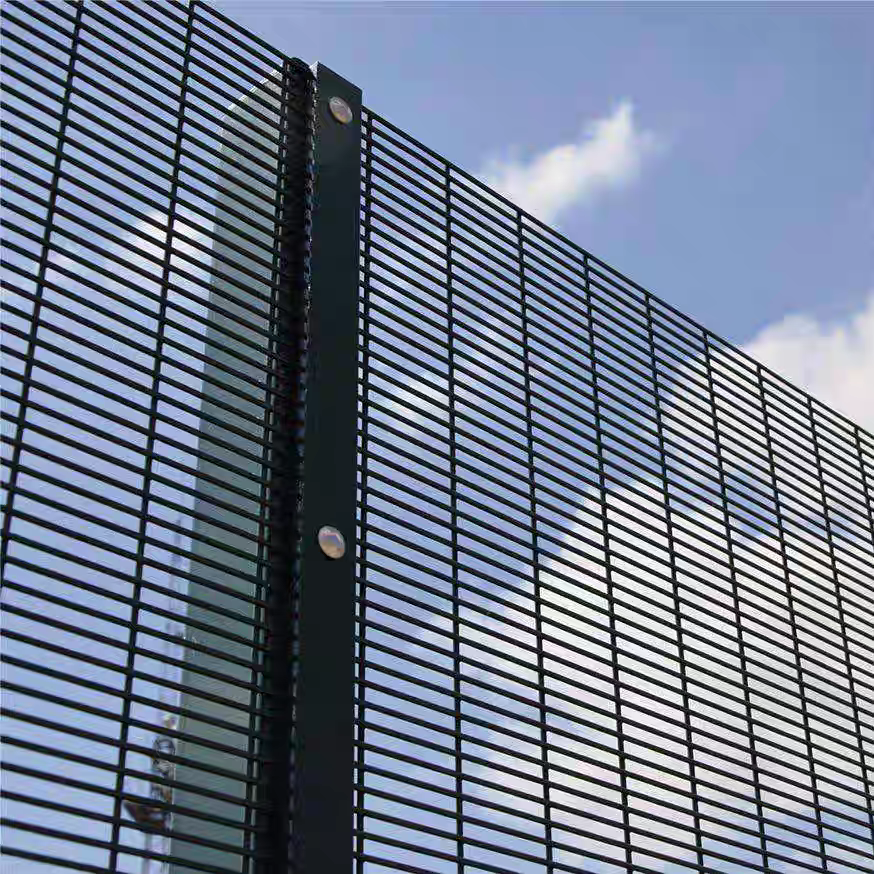

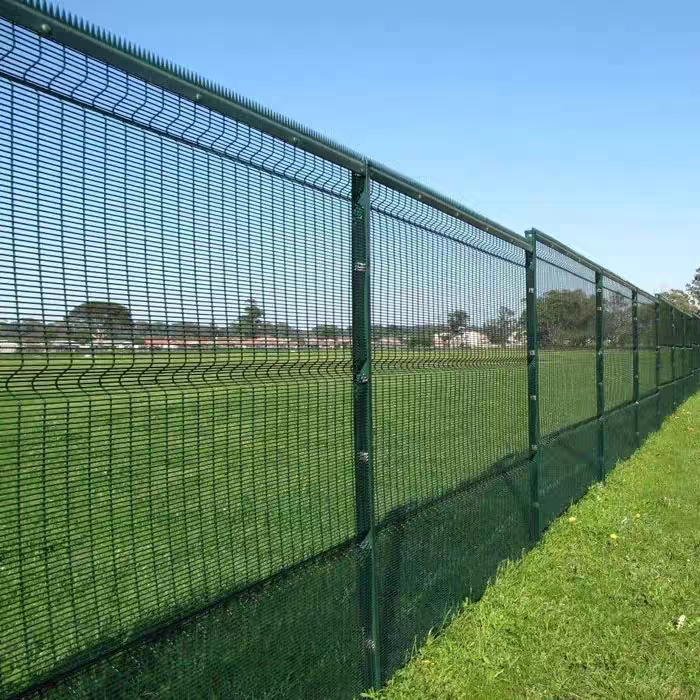

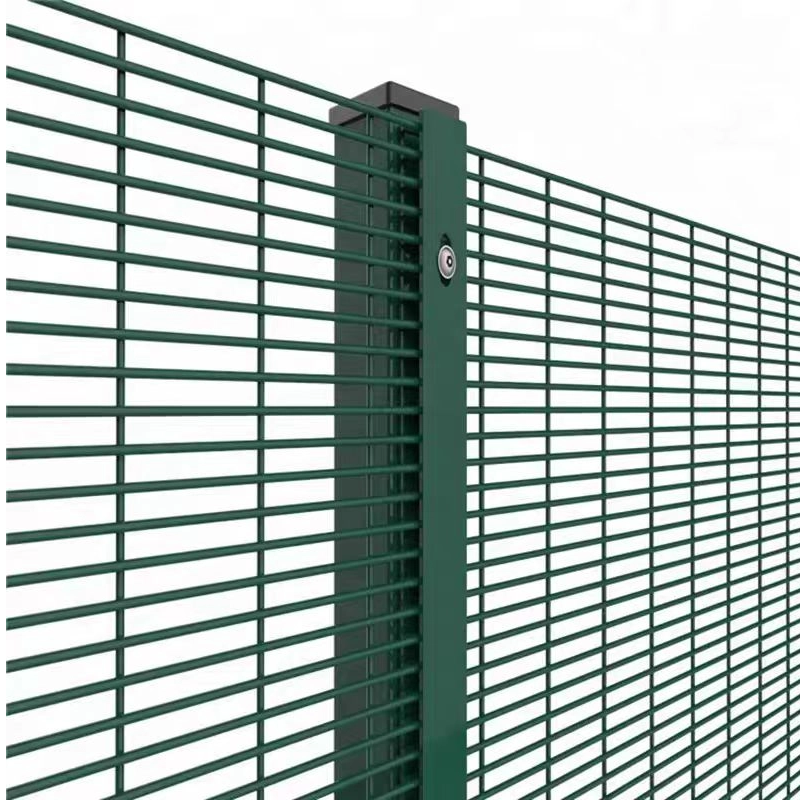

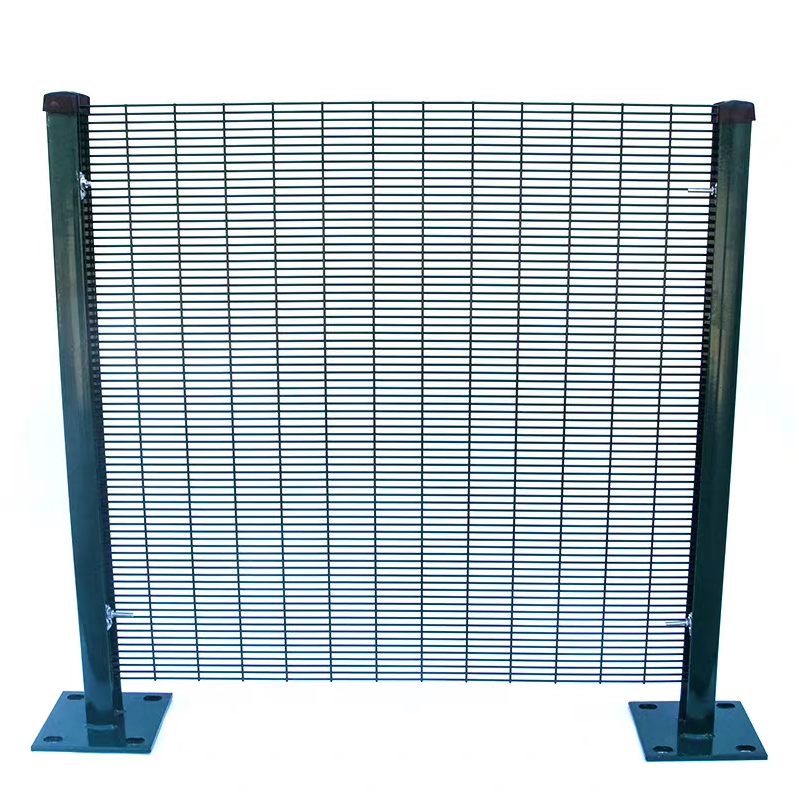

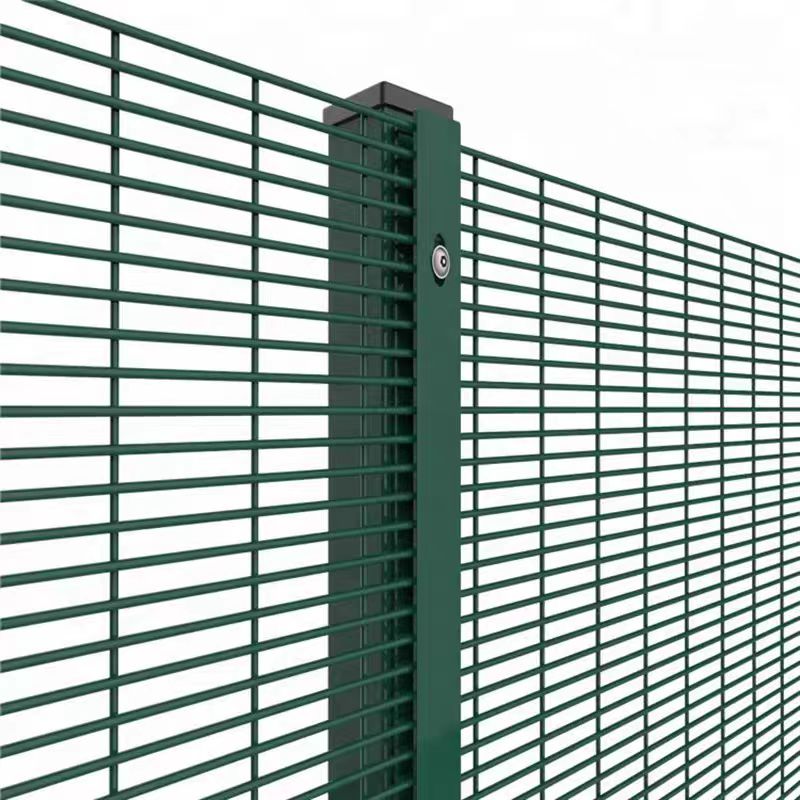

As a special protective fence designed specifically for high security scenarios such as military bases, prisons, nuclear power plants, and data centers, the 358 fence has become a benchmark product in the global security field due to its unique structural design and excellent performance. Its name "358" is directly derived from the core parameters: horizontal grid spacing of 76mm (3 inches), vertical grid spacing of 12mm (0.5 inches), and woven with No. 8 steel wire (diameter of about 4mm) to form a dense and sturdy protective network.
Excellent protective performance, redefining safety standards

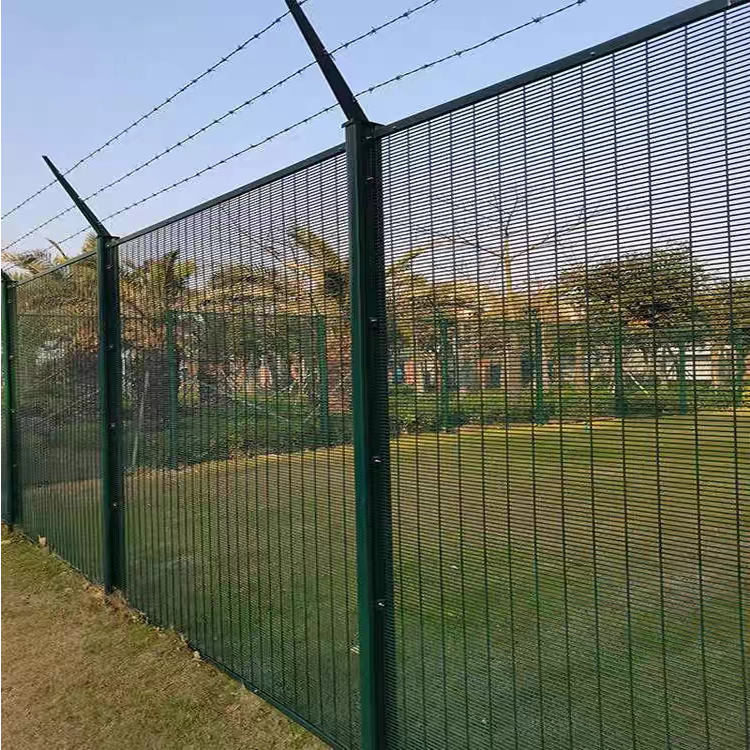

Anti climbing design: The 76mm × 12mm fine mesh effectively prevents fingers from grasping, combined with 3-5mm thick anti shear steel wire, completely eliminating invasive behaviors such as climbing and cutting. The top can be equipped with Y-shaped anti climbing or snake belly blade barbed ropes to form a three-dimensional protective barrier.
Structural stability: Q235 low-carbon steel wire is used for cold drawing treatment, with a tensile strength of over 500MPa. The fence frame is reinforced with rectangular steel pipes and equipped with embedded foundation bolts, which can withstand wind loads and impact damage of level 8, and remain stable in the seismic intensity zone of level 8.
Corrosion resistance upgrade: Provides dual protective coatings of galvanizing, dipping, and spraying, with no red rust after more than 1000 hours of salt spray testing. PVDF fluorocarbon coating can be optionally selected, with a lifespan of up to 25 years in coastal high salt spray and industrial corrosive environments.
Full dimensional customization, adapted to diverse scenarios
Flexible customization of size: height coverage of 1.5-4 meters (conventional 2 meters/2.5 meters/3 meters), width of 2-3 meters standard board, supports non-standard size customization. The 4-meter ultra-high version is designed specifically for airport fencing and border isolation.
Color Aesthetics System: Provides standard color schemes such as dark green, gray white, police blue, desert yellow, etc., and can also be customized with camouflage coating or enterprise exclusive colors, balancing concealment and identification needs.
Modular installation system: adopting bolt connection+welding dual process, with a single panel weight of 122 pounds (about 55kg), equipped with prefabricated concrete base or quick installation bracket, greatly improving daily installation efficiency.
Deep understanding of technical parameters
Core material: Made of low-carbon steel wire, balancing strength and ductility.
Mesh accuracy: Laser cutting is 76mm × 12mm, minimizing tolerances and minimizing mesh flatness errors.
Coating process: galvanizing, spray coating, immersion coating, and PVC spray coating.
Application scenario expansion
Military stronghold: ammunition depot, command center, three-dimensional protection
Judicial system: prison and detention center escape barriers
Energy facilities: perimeter protection for power plants and oil depots
Transportation hub: airport, train station isolation zone
High end property: villa area, industrial park intelligent enclosure
Installation and Maintenance Guide
It is recommended to use concrete pouring foundation+embedded steel plate connection, combined with electronic fence alarm system to achieve dual protection of physical and technical defense. Daily maintenance only requires rinsing with clean water, and damaged areas of the coating can be partially repaired, extending the overall service life.
Choosing the 358 anti climbing fence means choosing a safety protection solution that has been validated by over 3000 major projects worldwide. From extreme cold bases in Alaska to desert prisons in the Middle East, from Nordic data centers to port facilities in Southeast Asia, 358 fences are built with impeccable craftsmanship standards to create an unbreakable security line. Customize your exclusive protection plan immediately, making professional security within reach.
FAQS:
Q1: What is the meaning of the name?
Horizontal spacing of 3 inches (76mm), vertical spacing of 0.5 inches (12mm), and No. 8 steel wire (4mm) form a high-density anti climbing grid.
Q2: Anti climbing principle?
The fine mesh prevents grasping, the thick steel wire is resistant to cutting, and the top can be equipped with anti climbing/blade piercing ropes, providing triple protection against intrusion.
Q3: Applicable scenarios?
High security places such as military bases, prisons, and nuclear power plants; More resistant to climbing than peach shaped fences, but at a higher cost.
Q4: How long can it be used?
Galvanized+dip coated, salt spray test for over 1000 hours without rusting; PVDF coating for coastal environments, with a lifespan of 25 years.
Q5: Size and installation?
Customizable height of 1.5-4 meters, standard board width of 2-3 meters; Modular installation, daily installation of 200 meters, recommended bolt+welding fixation.
Q6: Color selection?
Standard colors such as dark green, gray white, etc. can be customized with camouflage or corporate colors; Use dark colors for concealed scenes and bright colors for identification scenes.
Q7: Maintenance costs?
Rinse with clean water, inspect the coating every six months, repair any damages, and have low long-term costs.
Q8: How to choose specifications?
Select a high-risk scenario with a height of 4 meters, 5mm thick wire, and double coating; Low risk selection of 2-3 meters+3-4mm wire+single coating requires professional evaluation.
