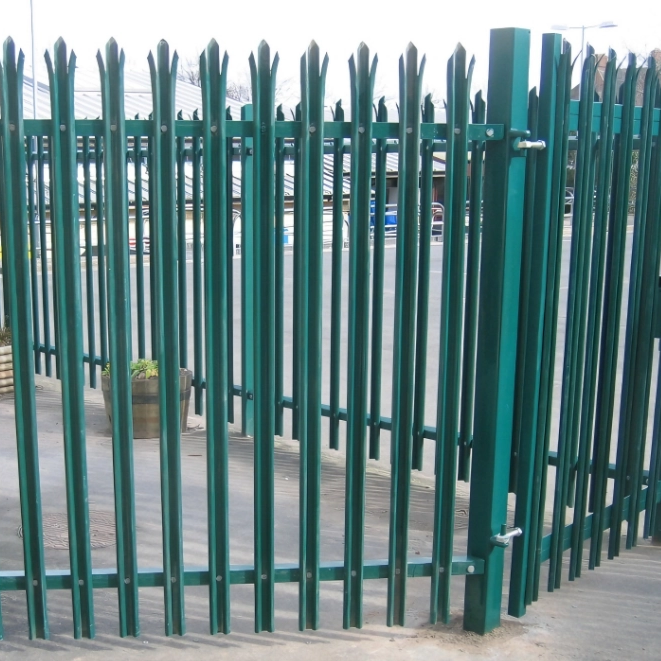

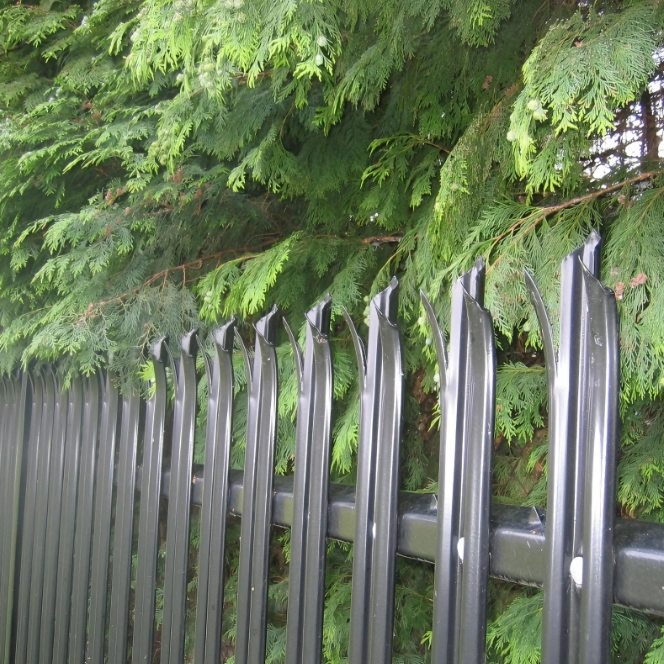

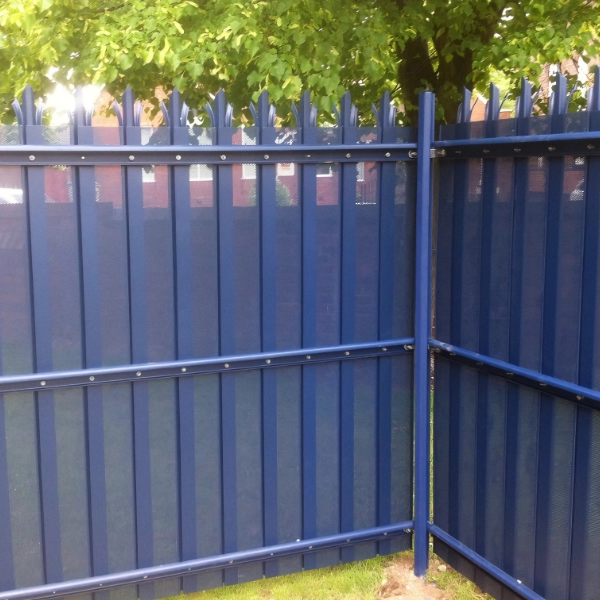

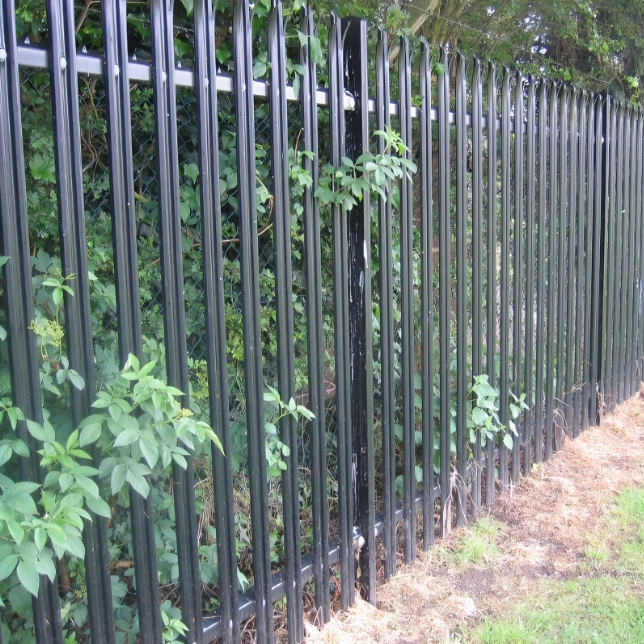

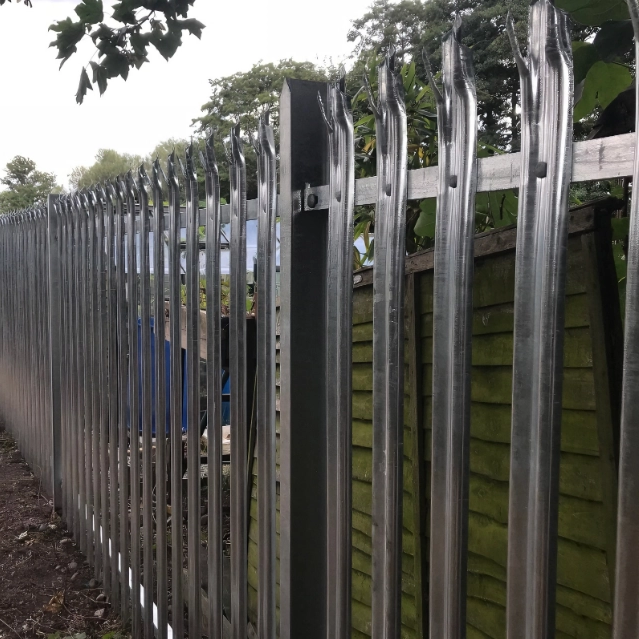

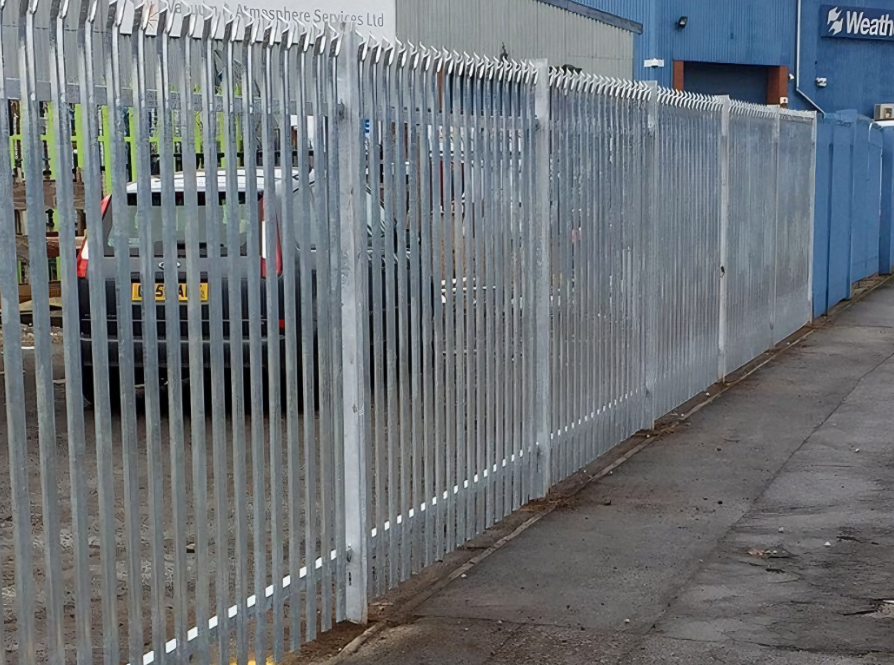

Zinc steel perimeter security fence is a professional security facility that integrates safety protection, long-term durability, and scene adaptation. It is widely used in residential, commercial, industrial, government and other fields for perimeter protection.
The product adopts a modular structural design, with the core components including vertical steel drums/wooden piles (cold-formed, with pointed/circular/bent tops), horizontal full-length beams, and thickened galvanized steel pipe columns (spaced 2.5-3m apart); The bottom of the column can be fixed by pre embedded or expansion bolts, with a wind resistance level of 8 or above. Production requires four processes: rust removal, phosphating, galvanizing, and spraying. The surface is smooth and free of burrs, balancing protective performance and aesthetics, and can be customized to adapt to the surrounding environment.
Conventional heights: 1m, 1.2m, 1.5m, 1.8m, 2m (suitable for different basic protection scenarios);
Customized height: up to 3m, high security level scenarios can be customized beyond 3m through reinforced structures; The height error is controlled within ± 5mm to ensure the continuity of perimeter protection.
Standard color schemes: blue and white, green and white, black and white (all using outdoor electrostatic powder spraying technology, with uniform color and strong adhesion);
Customized service: Supports full-color matching according to color card numbers, with three surface textures available: matte, glossy, and frosted.
Style classification: ① Basic protection series (two beam, three beam, four beam);
② Enhanced deterrence series (Xingang one-way elbow, zinc steel two-way elbow);
③ Aesthetic protection series (three beam C-shaped guardrail, four beam D-type guardrail);
④ Scene specific series (zinc steel wrought iron guardrail, courtyard lawn guardrail).
General structure: The crossbeam and column are double fixed with buckles and bolts; The column is equipped with two installation accessories: pre embedded flange (concrete floor) and expansion bolt (hard floor); The vertical steel drum/wooden pile spacing is uniformly 12-15cm, which has excellent anti drilling effect.
Main material: Q235 high-quality galvanized steel, with steel thickness divided into three grades: 1.2mm, 1.5mm, and 2.0mm;
Anti corrosion process: dual protection of hot-dip galvanizing and electrostatic powder coating (galvanized layer thickness ≥ 85 μ m, powder coating thickness ≥ 60 μ m);
Salt spray test for ≥ 500 hours, capable of withstanding harsh environments such as coastal humidity, industrial dust, rain, snow, freezing, and thawing.
1.Dual protection: physical protection (reasonable height+12-15cm spacing+stable structure)+visual deterrence (special top design+eye-catching color matching), with no burrs on the rounded corners and hidden bolts to prevent prying;
2. Long term durability: With a service life of 15-20 years, it is suitable for both northern and southern climates. It only needs to be wiped with clean water for daily use and does not require regular painting and maintenance;
3. Flexible customization: Height, color, style, and material thickness can be customized according to needs, supporting the installation of anti-theft bolts, anti disassembly alarm devices, and reflective strips. Standardized production ensures accurate dimensions and controllable delivery;
4. Efficient installation: Modular standardized components, no need for cutting and welding, single person operation; No large equipment, low noise and no dust; The installation period for a 100m perimeter is only 1-2 days;
5. Widely applicable: covering residential, commercial, industrial, government agencies and other scenarios, it is also suitable for scenic spots, municipal greening, schools, hospitals, and can achieve multiple functions such as isolation, protection, and crowd guidance.
Q1.Is the fence material environmentally friendly?
A1：Yes, we use high-quality low-carbon steel materials made of recyclable steel that can be used for more than ten years. Metal materials can be reused to save energy and costs.
Q2. Do we have a responsibility to provide detailed design for the fence and gate foundation?
A2：Yes, once you provide specific requirements, we can provide detailed information on fence materials and sectional drawings as part of the technical requirements for your reference.
Q3. What is the performance of the material finish?
A3：The fence has undergone appropriate anti-corrosion, windproof, and rust proof treatments.
Q4. Do you provide customized designs for fences?
A4：Yes, we can offer OEM or meet specific style requirements based on mass production.
