A safe industrial floor must carry weight, drain quickly, and remain practical to maintain. Steel Grating does all three through an open grid of load-bearing bars and cross bars. Anping Junhe Metal Products Co., Ltd. manufactures steel grating for platforms, walkways, drainage channels, stair treads, and other demanding applications, supplying custom sizes and finishes for projects worldwide.

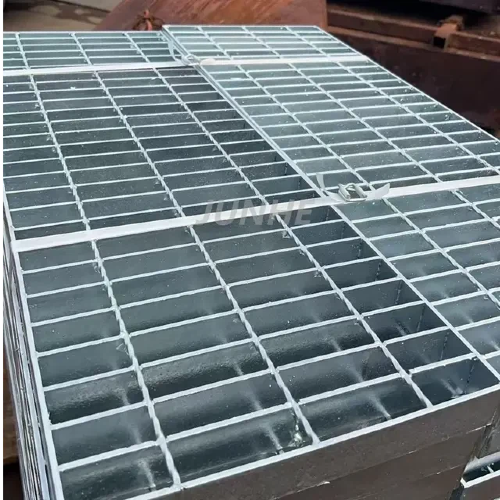

Steel grating is a metal panel made from parallel bearing bars connected by cross bars. The bearing bars carry the main load, while the cross bars keep the spacing stable and form a strong, regular grid.
The spaces between the bars allow water, air, light, dirt, and small debris to pass through. This makes the product useful in areas where a solid steel plate would trap liquids, add extra weight, or block ventilation.
A grating panel works as a complete system. Bearing bar depth, thickness, spacing, clear span, and support conditions all affect its performance. Deeper or thicker bars can carry heavier loads when the panel is designed correctly.
The direction of the bearing bars also matters. They should span between the supports, while the cross bars run across them. Correct orientation helps the panel transfer loads safely to the supporting structure.
Solid plate creates a continuous surface, but it is heavier and does not drain naturally. Rainwater, oil, mud, or process residue can remain on top unless a separate drainage system is provided.
Steel bar grating offers a lighter, more open surface. It supports workers and equipment while allowing fluids to fall through. The open area can also improve airflow, increase visibility below the platform, and make pipes or channels easier to inspect.
The fabrication method affects strength, appearance, spacing accuracy, and final use. Junhe supplies welded and press-locked products in materials and finishes selected for the operating environment.
Welded steel grating is made by joining cross bars to bearing bars at regular intervals. The welded intersections create a rigid panel suitable for factory platforms, catwalks, trench covers, stair treads, and service walkways.
Press-locked grating is produced by pressing cross bars into prepared slots in the bearing bars. It has a clean, uniform appearance and can be used for walkways, screens, ventilation panels, and public access areas.
Both forms can be supplied as standard panels or fabricated from project drawings. Cutouts for pipes, columns, and equipment can be added, while banded edges provide a neat perimeter and support easier installation.
Carbon steel is widely used because it provides dependable strength and efficient fabrication. Hot-dip galvanizing adds a protective zinc coating after fabrication, helping the steel resist corrosion in outdoor, wet, and industrial locations.
Stainless steel grating is better suited to frequent washing, chemicals, food-processing environments, and persistent moisture. The grade should match the actual exposure because temperature and chemical concentration can affect service performance.
Steel grating is available in different forms because a drainage channel, a pedestrian platform, and a vehicle crossing do not have the same requirements.

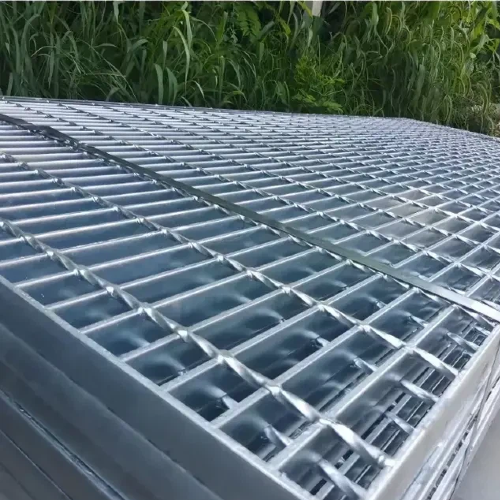

Hot-dip galvanized grating combines the strength of carbon steel with a corrosion-resistant zinc surface. It is commonly installed in power plants, wastewater facilities, outdoor platforms, loading areas, and access routes around machinery.
Panel size, bearing bar spacing, edge details, and fixing methods can be adapted to structural drawings. This makes galvanized grating suitable for both new construction and replacement work.
Drainage grating covers trenches, channels, catch basins, and floor drains while allowing water to pass through. It creates a usable surface above the drainage route and keeps the channel accessible for cleaning.
The design should reflect the expected traffic. Pedestrian areas, forklift lanes, parking facilities, and roadways require different load capacities and opening sizes.
Serrated grating has a textured upper edge that improves traction in wet, oily, snowy, or dirty conditions. It is often used near processing equipment, washdown areas, outdoor stairs, and marine access points.
Heavy-duty grating uses stronger bearing bars and project-specific spacing for vehicle crossings, ports, industrial yards, and machinery zones. Its design should account for wheel loads, impact, clear span, and traffic frequency.

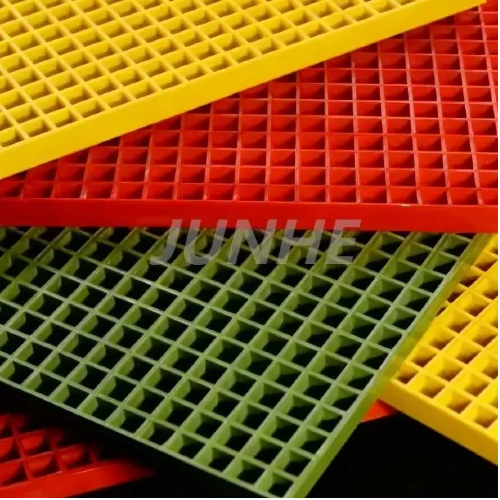

Fiberglass grating is not steel, but it serves many of the same platform and walkway applications. Its low weight and corrosion resistance make it useful in chemical, marine, and electrical environments.
Junhe supplies both metal and fiberglass grating, allowing projects to compare structural load, corrosion exposure, conductivity, installation weight, and maintenance needs.
Grating Type | Main Benefit | Common Use | Key Project Detail |
Hot-dip galvanized grating | Better corrosion protection | Platforms and walkways | Coating and bearing bar size |
Drainage grating | Maintains water flow | Trenches and floor drains | Load class and opening size |
Serrated grating | Improves surface grip | Stairs and process areas | Surface condition |
Heavy-duty grating | Supports demanding traffic | Vehicle and machinery zones | Span and load calculation |
FRP grating | Low weight and corrosion resistance | Chemical and marine facilities | Resin and panel thickness |
Steel grating is most useful where strength, drainage, ventilation, and convenient access are needed at the same time.
Factories and processing plants use steel grating around equipment, tanks, pipes, and production lines. It creates a stable working surface without forming a heavy closed floor above the operating area.
Liquids and loose material can pass through the openings, airflow can continue around equipment, and light can reach lower levels. Removable panels also make inspection and maintenance easier.
Junhe can produce platform grating with custom dimensions, cutouts, banded edges, toe plates, and fixing accessories to match the supporting structure.
Drainage grating is widely used in factories, warehouses, ports, parking areas, wastewater plants, and public infrastructure. A properly designed cover supports the expected traffic while preserving water flow and access for cleaning.
The frame, support ledge, bearing bar direction, and panel restraint all contribute to performance. Removable sections are especially useful where channels require regular maintenance.
Steel grating stair treads are common in industrial stairs, fire escapes, maintenance towers, and mezzanine access systems. Their open surface allows rain, dirt, and process residue to pass through instead of collecting on the step.
A tread may include anti-slip nosing to improve traction and visibility. Width, side plates, bolt holes, bar direction, and surface texture should match the stair structure and expected use.
Wastewater plants use grating around tanks, pumps, channels, and treatment equipment. Galvanized carbon steel suits many general outdoor areas, while stainless steel or FRP may be better for more aggressive exposure.
Ports and marine facilities use grating for docks, gangways, and service platforms because rain and spray can drain quickly. Salt, vibration, and repeated impact make suitable coatings and secure fastening important.
The main advantage is structural efficiency. Steel grating places most of its material in the bearing bars that span between supports. The open spaces reduce dead weight without removing the members responsible for carrying the load.
A lighter panel is easier to transport, lift, and install. It also adds less permanent weight to the supporting structure, an important benefit for elevated platforms, maintenance walkways, and retrofit projects.
Lower weight does not mean low strength. Properly designed bearing bars can carry demanding loads, but the panel must match the span, support arrangement, and intended traffic.
Water, oil, dirt, and process residue can pass through the openings instead of remaining on the walking surface. This is useful in washdown areas, outdoor plants, processing zones, and locations exposed to rain.
The area below still needs an appropriate collection or drainage system, but the upper surface remains open and easier to keep clear.
Open grid flooring allows air to circulate around equipment and service areas. Light can reach lower platform levels, while maintenance teams can inspect pipework, valves, cable routes, and channels more easily.
Individual panels can be removed when equipment below needs service. Clips hold the grating securely during normal use while keeping maintenance access available.
Custom fabrication supports irregular floor plans, columns, pipes, curved edges, and equipment openings. Junhe can process panels according to drawings, reducing cutting and adjustment during installation.
Anping Junhe Metal Products Co., Ltd. is a manufacturer, processor, and supplier of metal products with experience in steel bar grating and related access solutions. The company serves industrial, infrastructure, drainage, and construction projects in international markets.
Junhe’s product range includes galvanized steel grating, drainage grating, platform panels, stair treads, and fiberglass grating. Bearing bar dimensions, spacing, panel size, edge treatment, surface finish, and fabrication details can be produced according to project drawings.
For industrial flooring, Junhe supplies panels for walkways, maintenance access, elevated platforms, and equipment areas. For drainage work, the company provides trench covers and channel grating designed around span, traffic, and environmental conditions.
Junhe focuses on innovation, quality, and practical manufacturing. By matching material use, panel design, and surface protection to real applications, the company helps projects improve safety, drainage, and operating efficiency.
Anping Junhe Metal Products Co., Ltd. supplies steel grating that combines load support, drainage, ventilation, and convenient access in one practical surface. For custom dimensions, finishes, or project drawings, contact us to discuss the right Hot-Dip Galvanized Steel Grating for your platform, walkway, stair, or drainage application.
Yes. Outdoor steel grating is often hot-dip galvanized to protect the carbon steel surface. The most suitable coating depends on humidity, salt exposure, chemicals, and maintenance conditions.
Heavy-duty grating can support vehicle traffic when it is designed for wheel loads, span, impact, support width, and traffic frequency. Standard pedestrian grating should not be assumed to carry forklifts or trucks.
Smooth grating has a flat upper bearing bar surface. Serrated grating has a textured edge that provides better traction in wet, oily, or dirty locations.
Yes. Panels can be fabricated from drawings with special dimensions, banded edges, cutouts, stair tread details, and fixing arrangements. Custom production helps the grating fit the structure with less work on site.
