When a liquid, gas, or loose material needs to pass through while unwanted particles are held back, Filter Mesh provides a controlled separation surface. Its openings determine what can pass and what remains behind, making it useful in water treatment, industrial processing, mining, ventilation, and equipment protection. Anping Junhe Metal Products Co., Ltd. manufactures filter mesh products in different materials, opening sizes, panel forms, and finished components for global industrial applications.
Filter mesh is a metal screen with controlled openings used to separate particles from liquids, gases, or bulk materials. Depending on the application, it may be made from woven wire, welded wire, perforated sheet, or heavy-duty screening mesh.
The basic principle is simple. Material smaller than the effective opening can pass through, while larger particles are retained. However, actual performance also depends on particle shape, wire diameter, pressure, flow speed, and the way the mesh is supported.
Every filter mesh contains a repeated pattern of holes or spaces. These openings create the separation point between accepted material and unwanted particles.
Large openings are suitable for coarse screening, drainage, and ventilation. Smaller openings are used for finer separation and filtration.
The required opening should match the material being processed. A screen used for quarry stone has very different requirements from a mesh used to remove sediment from water.
Woven wire filter mesh is produced by interlacing metal wires. It can create fine and consistent openings for liquid, air, and particle separation.
Perforated metal mesh begins as a solid sheet that is punched with round, square, or customized holes. It is more rigid than fine woven mesh and can withstand greater impact or pressure when properly supported.
Filter baskets often combine perforated plate with woven mesh. The perforated structure provides strength, while the finer mesh controls the required level of separation.
Filter mesh works by creating a physical barrier between particles of different sizes. The design must balance filtration accuracy, flow rate, strength, and cleaning requirements.
Opening size is the clear space between wires or around the edges of a perforated hole. It determines the approximate size of material that can pass through the screen.
A smaller opening retains finer particles, but it can also reduce flow and become blocked more quickly. A larger opening improves flow but allows more material to pass.
For reliable performance, the opening should be selected according to the actual particle size and operating conditions rather than by product name alone.
Wire diameter influences both strength and open area. Thicker wire creates a stronger mesh but occupies more space, reducing the free area available for flow.
Finer wire provides more open space and can create smaller apertures, but it may need a supporting frame or perforated backing under pressure.
The final design should balance structural support with the required filtration rate.
As particles collect on the mesh, they reduce the open area and increase resistance to flow. This can raise pressure drop and reduce system efficiency.
A filter that clogs frequently may require a larger surface area, a coarser opening, or a cleaning system. Removable baskets are useful because they allow trapped material to be emptied and the screen to be washed.
Pressure, temperature, vibration, and chemical exposure should also be considered when selecting material and support structure.
Mesh size and micron rating are both used to describe filtration, but they do not mean the same thing.
Mesh count usually refers to the number of openings across one linear inch of screen.
A higher mesh count normally indicates smaller openings, but the actual aperture also depends on wire diameter. Two screens with the same mesh count can have different opening sizes if one uses thicker wire.
For this reason, mesh count alone is not enough to define filtration performance.
A micron is one-millionth of a meter. Micron ratings describe particle or opening size on a much smaller scale.
A lower micron value generally represents finer filtration. A higher micron value allows larger particles to pass.
Micron ratings may be described as nominal or absolute. These terms should only be used when supported by clear product data or test standards.
Mesh count is based on the number of openings, while micron rating refers to physical size. Wire diameter changes the clear opening within the same mesh count.
Conversion charts can provide a general reference, but they should not replace the stated aperture and wire specification.
For industrial projects, it is better to confirm the required opening size, material, wire diameter, and open area together.
Term | What It Describes | Effect of a Higher Value | Main Limitation |
Mesh count | Openings per linear inch | Usually produces finer screening | Wire diameter changes the aperture |
Opening size | Clear space between wires or hole edges | Allows larger particles to pass | Unit must be stated clearly |
Micron rating | Particle or aperture size | Produces coarser filtration | Nominal and absolute values differ |
Wire diameter | Thickness of each wire | Improves strength | Reduces open area |
Open area | Percentage available for flow | Supports greater flow | May reduce structural rigidity |
Pressure drop | Resistance created during filtration | Requires more system pressure | Increases as the mesh clogs |
Filter mesh is available in several forms because liquid filtration, quarry screening, and equipment protection require different structures.
Woven filter mesh is made by interlacing metal wires into a regular pattern. It can be produced with fine openings and consistent spacing.
Stainless steel woven mesh is often used in water treatment, food processing, chemical equipment, ventilation, and general industrial filtration.
Its performance depends on weave type, opening size, wire diameter, and material grade.
Perforated metal mesh is made by punching holes into a metal sheet. Common hole shapes include round, square, and slotted openings.
The solid sheet structure provides greater rigidity and impact resistance than fine wire mesh. It is used for screens, guards, ventilation panels, filter supports, and industrial separation.
Hole size, spacing, sheet thickness, and open area can be customized according to the project.

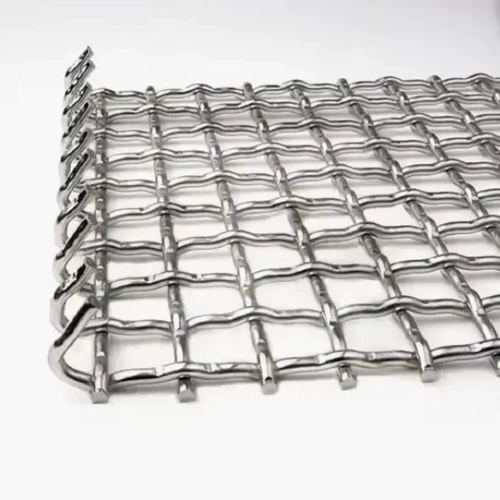

Manganese steel screen mesh is designed for demanding quarry, mining, and aggregate applications.
It separates stone, minerals, and other bulk materials according to size. Wear resistance, impact strength, screen tension, and opening consistency are especially important in vibrating equipment.
This product performs coarse industrial screening rather than fine liquid filtration.

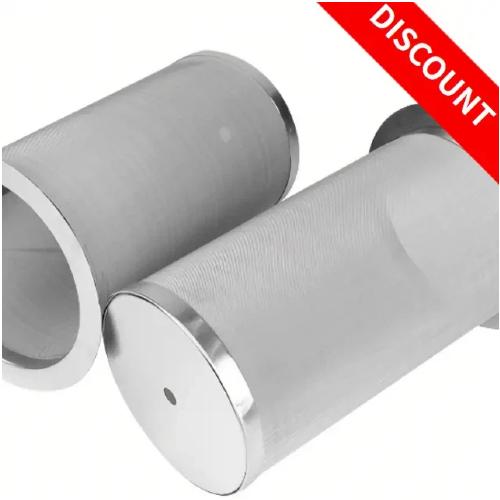

A filter basket is a formed component installed inside a pipe, tank, pump, or processing system. It captures solid particles before they reach downstream equipment.
Perforated plate provides structural support, while an additional mesh layer may be added when finer filtration is required.
Baskets can be produced in different diameters, lengths, flange styles, openings, and material grades.
Filter mesh supports separation processes across many industries.
Water treatment, irrigation, cooling systems, and industrial circulation systems use mesh to remove sediment, scale, and other solid material.
The selected opening must retain unwanted particles without restricting flow more than necessary. Stainless steel is often used where corrosion resistance and repeated cleaning are important.
Filter baskets also protect pumps, valves, and other equipment from larger debris.
Quarries and mining operations use heavy-duty screens to separate crushed stone, ore, sand, and aggregate into size groups.
The mesh is exposed to vibration, abrasion, and repeated impact. Wire strength, opening size, edge preparation, and screen tension therefore have a direct effect on performance.
Manganese steel mesh is commonly used where high wear resistance is required.
Perforated and woven mesh can protect fans, vents, machinery openings, and air-handling systems.
The screen blocks debris or accidental contact while allowing air to pass. The opening size and panel strength should match the equipment and surrounding environment.
Stainless steel filter mesh is used in processing equipment where corrosion resistance, cleaning, and material compatibility are important.
It can separate solids from liquids, support filter media, or protect downstream components. The selected material should match temperature, chemical exposure, and hygiene requirements.
Anping Junhe Metal Products Co., Ltd. manufactures and supplies filter mesh for industrial filtration, screening, ventilation, mining, and equipment protection.
Junhe’s product range includes perforated metal mesh, manganese steel screen mesh, vibrating screen products, and perforated plate filter baskets. Products can be customized in opening size, wire diameter, sheet thickness, panel dimensions, material, and finished shape.
For liquid and equipment applications, Junhe provides perforated screens and filter baskets that combine flow with structural support. For quarry and mining operations, heavy-duty screen mesh helps separate materials under vibration and abrasion.
Custom production allows each product to match particle size, operating pressure, environmental exposure, and installation requirements.
Anping Junhe Metal Products Co., Ltd. supplies filter mesh that helps separate particles, protect machinery, maintain flow, and improve industrial processing. With customizable apertures, materials, panel sizes, and finished forms, Junhe can support applications ranging from water filtration to quarry screening. Contact us to discuss your operating conditions and request a tailored Perforated Metal Mesh solution.
Filter mesh is used to separate particles, protect equipment, control airflow, and screen bulk materials. Common applications include water treatment, mining, ventilation, and industrial processing.
Usually, but not always. Actual opening size also depends on wire diameter, so mesh count should be considered together with aperture size.
Common materials include carbon steel, galvanized steel, stainless steel, and manganese steel. The correct material depends on corrosion, pressure, temperature, and wear conditions.
Yes. Opening size, wire diameter, hole shape, sheet thickness, dimensions, material, and finished component form can be produced according to project requirements.
