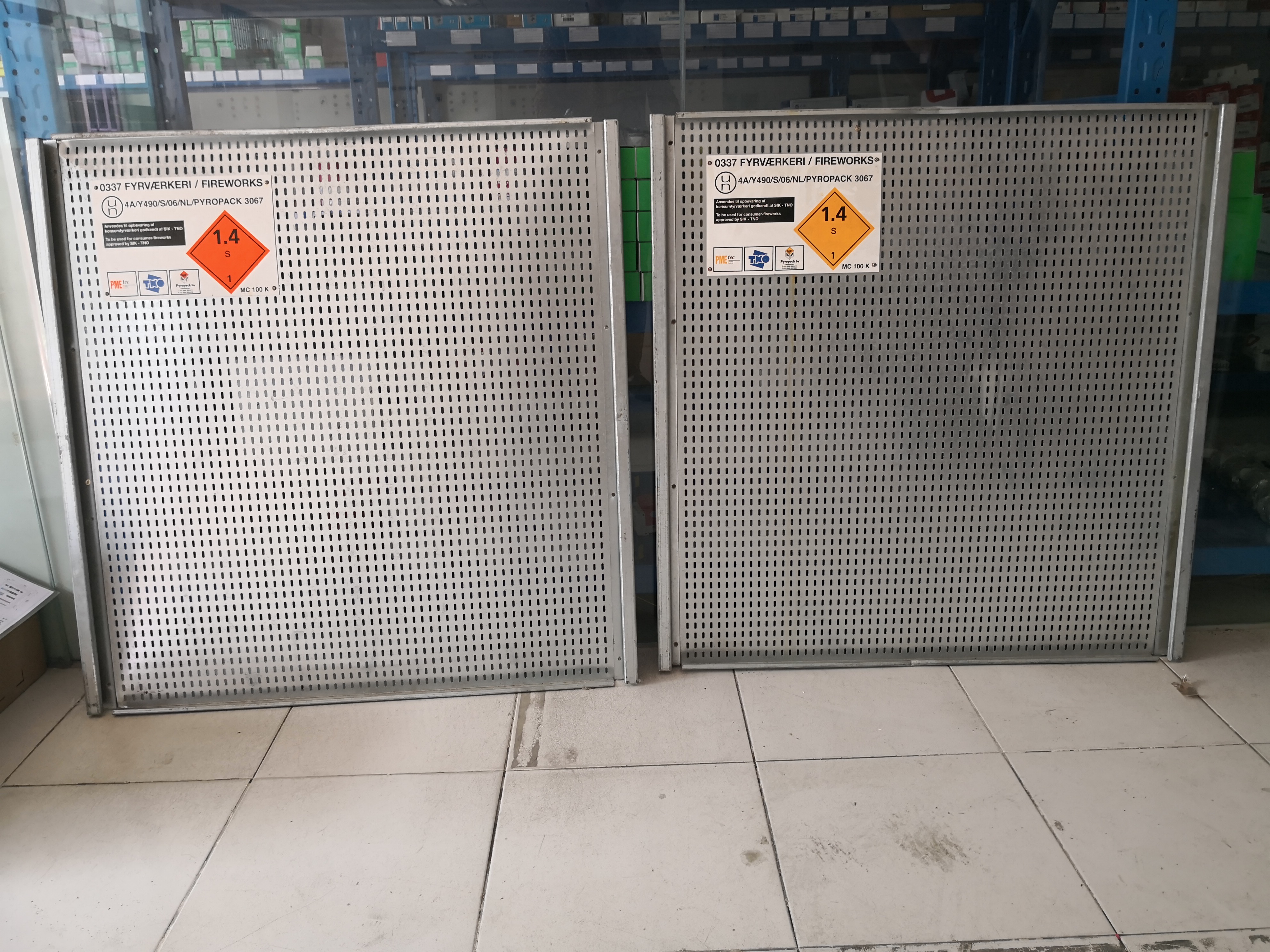

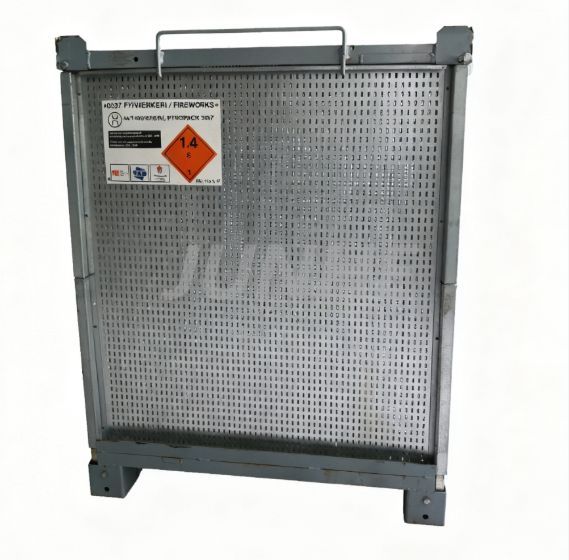

Heavy-Duty Pyro Cage for 1.3G Explosive/Flammable Products

5 0 Reviews
Material:Carbon Steel Q235 / Stainless Steel 304/316
External Dimensions (L×W×H):Customizable (standard sizes: 600×400×500mm, 800×600×700mm, 1000×800×1000mm)
Mesh Size:10×10mm / 15×15mm
Load Capacity:≤500kg
Surface Treatment:Hot-dip galvanization / Powder coating (custom colors available)
Certification:UN/DOT compliant, CE, SGS test report
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • JunHe

1. Product Overview

This pyro cage is specifically engineered for the safe storage, transportation, and handling of 1.3G-class products (including low-explosive, flammable, or pyrotechnic materials). Crafted with industrial-grade materials and compliance-focused design, it provides reliable protection against external impacts, fire risks, and unauthorized access—critical for industries such as mining, construction, fireworks, and military logistics.

2. Core Features

✅ 1.3G Classification ComplianceMeets global safety standards for 1.3G hazardous materials (UN 0335/0336, ASTM D2863, or local regulatory requirements). Certified to withstand thermal and mechanical stress, ensuring safe containment during storage and transit.
✅ Heavy-Duty Construction
  • Material: 3mm+ thick carbon steel or stainless steel (optional 304/316 for corrosion resistance).

  • Frame: Reinforced square tube (20x20mm/25x25mm) with full-welded joints for structural integrity—supports up to 500kg load capacity.

  • Mesh Design: 10x10mm/15x15mm dense steel mesh prevents debris entry and reduces fire spread, while allowing ventilation.

✅ Safety-Centric Design
  • Lockable Door: Equipped with a high-security padlock hasp (compatible with padlocks or RFID locks) to prevent tampering.

  • Rounded Edges: No sharp corners to avoid damage to packaged products or operator injury.

  • Stackable Structure: Built-in stacking lugs for space-saving storage (up to 3 units high) without compromising stability.

✅ Weather & Corrosion Resistance
  • Surface Treatment: Hot-dip galvanization (zinc coating ≥85μm) or powder coating (epoxy/polyester) for long-term resistance to rain, humidity, and chemical exposure—service life up to 10+ years.

  • Indoor/Outdoor Use: Suitable for both warehouse storage and on-site job site applications.

3. Specifications

ParameterDetails
Applicable Products1.3G explosives, pyrotechnics, flammable materials
MaterialCarbon Steel Q235 / Stainless Steel 304/316
External Dimensions (L×W×H)Customizable (standard sizes: 600×400×500mm, 800×600×700mm, 1000×800×1000mm)
Mesh Size10×10mm / 15×15mm
Load Capacity≤500kg
Surface TreatmentHot-dip galvanization / Powder coating (custom colors available)
CertificationUN/DOT compliant, CE, SGS test report

4. Application Scenarios

  • Safe storage of 1.3G pyrotechnic devices (e.g., industrial detonators, signal flares).

  • Transport container for hazardous materials in construction/mining sites.

  • Secure storage in fireworks factories, military bases, or logistics warehouses.

  • Temporary containment during on-site operations (e.g., blasting, infrastructure projects).

5. Customization Options

  • Tailored dimensions to fit specific product sizes or storage space.

  • Material upgrades (stainless steel for marine/chemical environments).

  • Additional features: Wheels for mobility, internal dividers for product organization, or nameplate engraving.

  • Color customization (RAL colors available for powder coating).

6. Quality Assurance

  • Each pyro cage undergoes strict quality inspections: load-bearing tests, corrosion resistance tests, and dimensional checks.

  • 12-month warranty against manufacturing defects (excludes wear and tear from improper use).

  • Professional technical support for installation, maintenance, and compliance guidance.

Ideal for businesses seeking a compliant, durable solution to manage 1.3G product safety—contact us for a custom quote or sample request!
