358 Micro-Weave Fence: An Innovative Barrier for High-Security Protection

358 Micro-Weave Fence: An Innovative Barrier for High-Security Protection

In modern security systems, 358 Micro-Weave Fence, with its unique design and superior performance, has become a core protection facility for high-security facilities such as prisons, airports, and military bases. Its name derives from its sophisticated construction of "3-inch x 0.5-inch mesh + 8-gauge wire." By combining extremely small mesh openings with high-strength materials, it achieves multiple functions, including anti-climbing, vandalism resistance, and corrosion resistance. It is known as the "most impenetrable security barrier."

Definition and Structural Characteristics

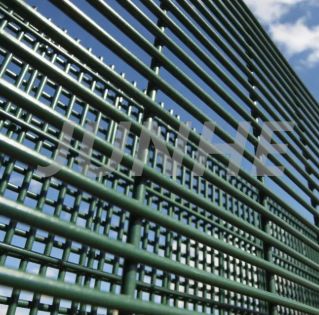

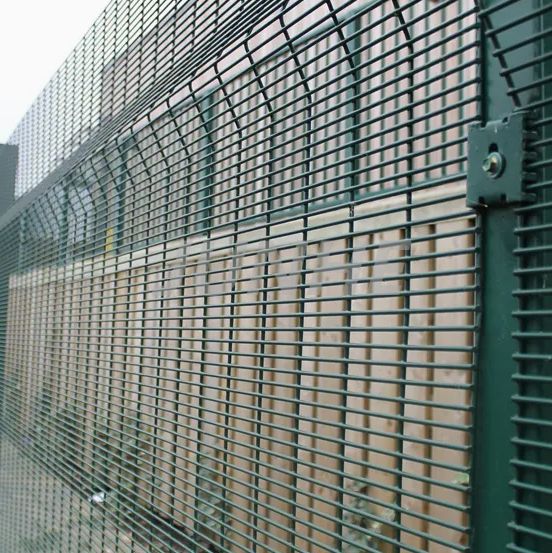

The core parameters of 358 Micro-Weave Fence are a mesh size of 76.2mm x 12.7mm. It is woven from low-carbon steel wire using an electric welding process. Its tight mesh is impenetrable to fingers and difficult to cut with tools, forming a "skynet" of physical protection. Surface treatments include hot-dip galvanizing or PVC coating, imparting excellent corrosion resistance and ensuring long-term use in harsh environments. The mesh can be connected in multiple sections to accommodate varying height requirements, and can be combined with razor wire mesh to further enhance the level of protection. The highly transparent mesh design ensures a secure viewing angle for security surveillance while blending harmoniously with the surrounding landscape.

Applications and Advantages

High-security Locations: In prisons, detention centers, and military restricted areas, 358 dense mesh effectively deters unauthorized intrusion with its dual protections of "anti-climbing" and "anti-shearing." Its mesh size is smaller than a human finger's width, and its thick wire diameter makes it difficult for conventional tools to break, earning it the reputation of an "anti-escape weapon."

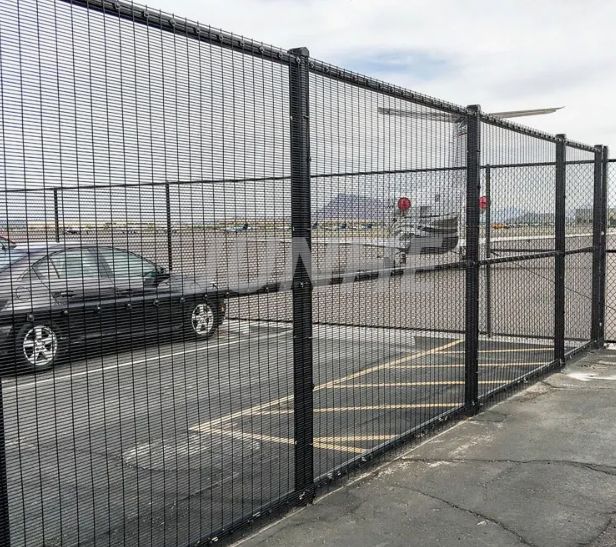

Civil and Industrial Applications: Widely used in airport perimeters, power plants, nuclear power plants, schools, hospitals, and residential areas. For example, airports utilize 358 dense mesh in conjunction with electronic fencing for dual "physical and intelligent" protection. Residential areas utilize its aesthetic and safety features to balance privacy and landscape harmony.

Highlights:

Excellent safety performance: The mesh is finely woven, impervious to gripping by fingers and tool insertion, and its shear strength meets industrial-grade standards.

Weather-resistant: The hot-dip galvanized coating resists UV rays and rain, offering a service life of over 20 years. Easy Installation: The modular design allows for quick assembly and adapts to complex terrain with either ground anchors or concrete bases.

Economical: Compared to traditional wrought iron guardrails, 358 dense mesh offers low maintenance costs and a higher cost-effectiveness over the long term.

Installation and Maintenance Specifications

Installation Key Points: The mesh height should be adjusted to the terrain. Extended braces should be used in low-lying areas to ensure vertical spacing is ≤200mm. Bolts should be used at mesh joints to prevent welding deformation. An impact test should be performed after installation to verify the anti-climbing performance.

Maintenance:Regular Inspection: Quarterly inspect the mesh integrity, fastening tightness, and coating peeling. Repair any broken or rusted areas promptly.

Cleaning and Painting: Use a soft brush to remove dust, remove rust from rusted areas, and apply anti-rust paint. PVC-coated mesh should be protected from scratches by sharp objects.

Seasonal Adaptability: Snow and ballast should be removed in winter, and moisture-proofing should be strengthened in summer to ensure structural stability. Conclusion

358 dense mesh fence, with its sophisticated structural design, robust safety features, and wide environmental adaptability, has become a benchmark product in the high-security protection field. From prison escape prevention systems to airport perimeter protection, from the confidentiality requirements of military bases to the security upgrades of civilian facilities, 358 dense mesh leverages the power of technology to build a security line, safeguarding both life and property while also becoming a model for modern protective engineering. In the future, with the integration of material science and intelligent technology, 358 dense mesh is expected to be further upgraded, providing smarter and more reliable security solutions for even more scenarios.
