Peach shaped guardrail: a dual guardian of safety and aesthetics

Peach shaped guardrail: a dual guardian of safety and aesthetics

In modern urban construction, guardrails serve as important carriers for safety protection and landscape beautification, and their design concepts are constantly breaking through traditional frameworks. Peach shaped guardrails, with their unique peach shaped column structure and modular design, have demonstrated excellent performance and aesthetic value in various scenarios such as highways, residential areas, airports, and industrial parks, becoming a benchmark product in the global security and municipal engineering fields.

Craftsmanship Design: The Perfect Fusion of Structural Aesthetics and Functionality

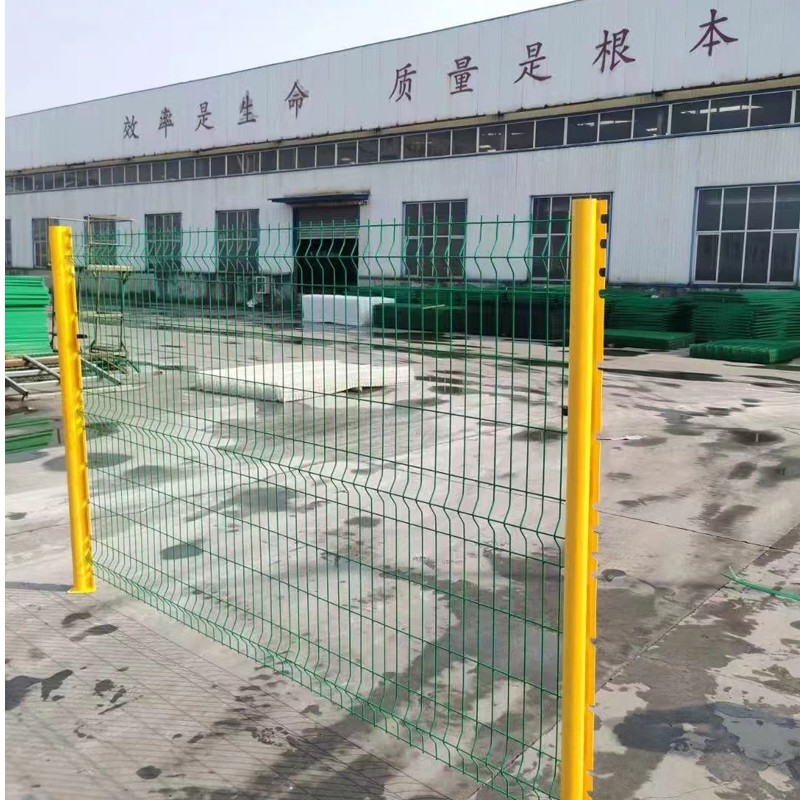

The core feature of the peach shaped guardrail is its column shape - the column is a regular semi elliptical shape, resembling a peach shape, hence the name "peach shaped column". This design not only gives the guardrail an elegant visual effect, but also achieves a breakthrough in impact resistance through mechanical optimization. The column is made of 1.0-1.2mm thick low-carbon steel plate and formed by cold pressing. A U-shaped hook notch is set on the inner side, which is connected to the mesh in a buckle and pull manner, forming a three-dimensional protective system. The mesh size is usually 50 × 100mm to 60 × 200mm, with a wire diameter of Φ 4.0-6.0mm, which ensures ventilation and transparency while effectively preventing finger grip or tool damage. The surface treatment adopts a dual process of galvanizing+dipping/spraying, which can resist 1000 hours of salt spray corrosion and has a lifespan of up to 25 years in high salt spray areas along the coast.

Full scene adaptation: diverse applications from transportation arteries to ecological landscapes

In the field of transportation, peach shaped guardrails are widely used in highway, railway, and airport runway isolation areas. Its modular installation system supports customization with a standard board width of 3 meters and a height of 1.5-4 meters. The 4-meter ultra-high version is specifically designed for airport isolation. The column is connected to the concrete base through pre embedded anchor bolts, which can withstand wind loads of level 8 and seismic intensity of level 8, ensuring extreme environmental stability. In residential areas, standard color schemes such as dark green, gray white, and police blue are paired with dual color columns/mesh to achieve both anti climbing and anti-theft functions, while harmoniously coexisting with the garden landscape. Industrial parks utilize their anti-corrosion properties to demonstrate long-term protection capabilities in corrosive environments such as chemical zones and ports.

Technological innovation: dual improvement of safety performance and construction efficiency

The anti pry design of peach shaped guardrails can be regarded as a model in the industry: the U-shaped hook is tangent to the straight edge of the column, and combined with a Y-shaped anti climbing device or snake belly knife gill net, it forms a physical and technical dual protection. The tensile strength of cold drawn steel wire exceeds 500MPa, and combined with rectangular steel pipe frame reinforcement, it can withstand an impact force of more than 5 tons. The installation process adopts a progressive construction method of "columns first, mesh later", with a single board weight of about 55kg. Combined with prefabricated concrete bases or quick installation brackets, the daily installation efficiency is increased by 40%. In terms of maintenance, only regular rinsing with clean water is required, and the damaged coating can be partially repaired, extending the overall service life to more than 15 years.

Ecological Wisdom: Practice of Sustainable Design Concept

In ecologically sensitive areas, peach shaped guardrails are integrated with vegetation through antique pillar design, such as desert yellow pillars combined with cactus landscapes, or deep green mesh coordinated with forest belts. PVDF fluorocarbon coating exhibits excellent performance in cold environments such as Nordic data centers, maintaining flexibility even at -40 ℃. In terms of materials, priority is given to using recyclable low-carbon steel wire, and the production process complies with ISO14001 environmental standards, achieving low-carbon management throughout the entire lifecycle from production to disposal.

From extreme cold bases in Alaska to port facilities in Southeast Asia, peach shaped guardrails are constructed with strict craftsmanship standards to create a safe defense line. Its modular design supports rapid restructuring and adapts to dynamic requirements such as temporary activity fences and emergency isolation zones. In the future, with the integration of intelligent security technology, peach shaped guardrails will integrate electronic fence alarm systems, achieving a dual upgrade of physical protection and intelligent monitoring, and continuously leading the aesthetic and functional innovation of security facilities.
