Guidelines for Safety And Use of Wire Mesh Fences: From Standardized Installation To Long Term Protection

Guidelines for Safety and Use of Wire Mesh Fences: From Standardized Installation to Long Term Protection

1、 Safety standards: hard specifications from materials to design

According to the national "Technical Specification for Metal Fence Engineering", qualified wire mesh fences need to use high-quality low-carbon steel wire, which is pickled and phosphated, and then subjected to dual protection of hot-dip galvanizing and electrostatic spraying. The thickness of the zinc layer needs to reach 85 μ m or more to ensure that the corrosion rate in acid rain environment is reduced to 1/5 of ordinary products. The mesh size needs to be strictly graded: children's activity areas should be ≤ 50mm to prevent jamming fingers, breeding farms should be ≤ 100mm to prevent young livestock from escaping, and industrial areas can be relaxed to 150mm, but snake belly shaped spikes need to be installed to enhance anti-theft performance. The spacing between columns shall not exceed 2.5 meters, and the burial depth shall be ≥ 800mm. A C25 concrete base shall be poured to ensure that the wind pressure resistance capacity reaches level 8.

2、 Installation risk prevention and control: professional construction and detail control

The installation process should follow the "Three Steps and Nine Checks" standard:

Positioning and laying out: Use a total station to determine the axis of the fence, with an error of ≤ 5mm, to avoid safety hazards caused by later tilting. A kindergarten in Shanghai caused a large gap between the fence and the wall due to positioning deviation, resulting in children falling and getting injured.

Column installation: Adopting the "bury first, pour later" process, the hole diameter needs to be 10cm larger than the column, filled with crushed stone and cement layered and compacted, and tested for verticality after 24 hours of curing.

Grid fixation: Use specialized buckles for tensioning, with a transverse steel wire tension of 200N, and reinforce crossbeams every 50cm longitudinally. In a residential area in Beijing, the fence collapsed in a rainstorm due to the excessive spacing of beams, causing damage to vehicles.

3、 Safe use: scenario based protection strategy

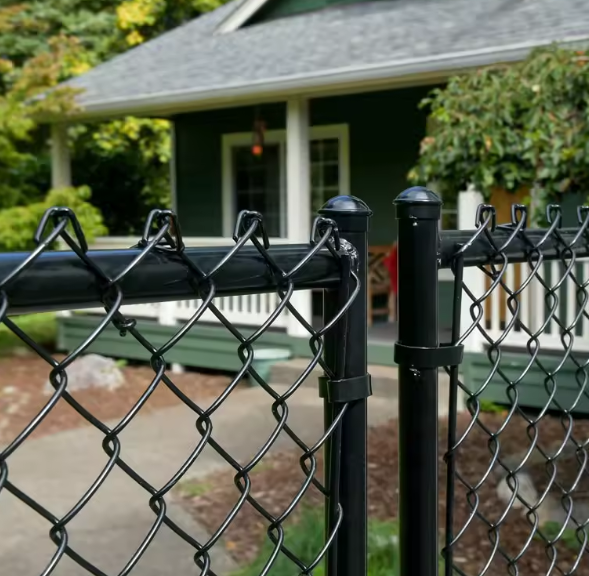

Family scenario: It is necessary to focus on preventing children from climbing and finger jamming risks. It is recommended to choose wire mesh with a mesh size of ≤ 50mm, rounded surface treatment, a height of ≥ 1.8 meters, and install anti climbing spikes at the top. A residential area in Hangzhou has reduced the rate of child falling accidents by 70% by installing 30cm high anti crawling nets.

Industrial scenario: Need to strengthen anti-theft and impact resistance performance. Adopting a dual system of snake belly shaped gill net and electronic fence, combined with infrared sensors to achieve 0.3mm vibration recognition. A logistics park in Wuhan successfully intercepted 98% of illegal intrusions through this plan.

Agricultural scenario: Balancing protection and ecology is necessary. The Australian "Ecological Corridor" plan reserves a 1.2-meter-high animal passage at the bottom of the fence, which is monitored by infrared cameras to protect farmland and maintain the migration path of wildlife, expanding the range of leopard activity by 35%.

4、 Maintenance and upkeep: from daily cleaning to intelligent monitoring

Establish a long-term mechanism of "three inspections and two protections":

Daily inspection: Check the integrity of the grid and the rusting of the wire. If rust spots are found, immediately use a wire brush and rust remover to treat them.

Weekly inspection: Check the torque of fixed bolts to ensure it is ≥ 25N · m, to prevent loosening and collapse.

Annual inspection: Conduct zinc layer thickness testing (≥ 65 μ m), and promptly apply epoxy zinc rich paint to damaged areas of the coating.

Intelligent monitoring: integrating IoT tension sensors and vibration monitoring modules to achieve real-time positioning of fence damage (error ≤ 1.5 meters). For example, the Xinjiang Yili Grassland Pilot Project has shortened the time for detecting fence damage from 12 hours to 40 minutes through this technology.

Conclusion

The safe use of barbed wire fences requires a full lifecycle of design, installation, and maintenance. By strictly implementing national standards, employing professional construction teams, implementing scenario based protection strategies, and establishing intelligent monitoring systems, the upgrade from "passive protection" to "active warning" can be achieved. When we see the faint outlines of iron wire in the city, we not only see physical boundaries, but also humanity's eternal pursuit of safety, freedom, and connection - this effort includes both the adherence to order and the wisdom to break through boundaries, just as barbed wire itself is both a limitation and a possibility for connection.
