Factory 235 Carbon Steel Bar Grating 1000MMX30MM Floor Walkway Drain Grating Drainages and Well Covers Grating

5 0 Reviews
Steel Grating Mesh is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other features. The hot dipped zinc coating gives the product excellent anti-corrosion.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • JunHe

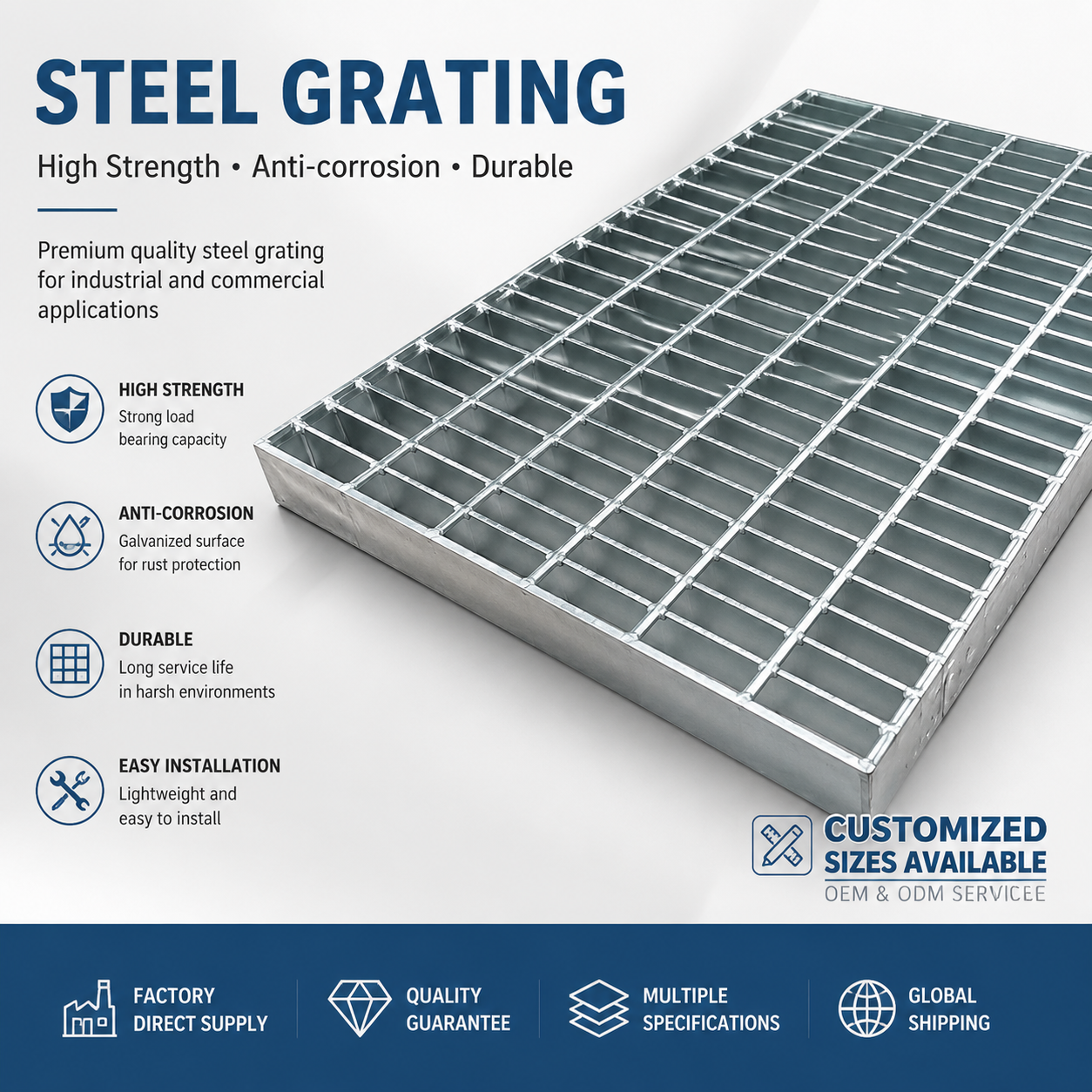

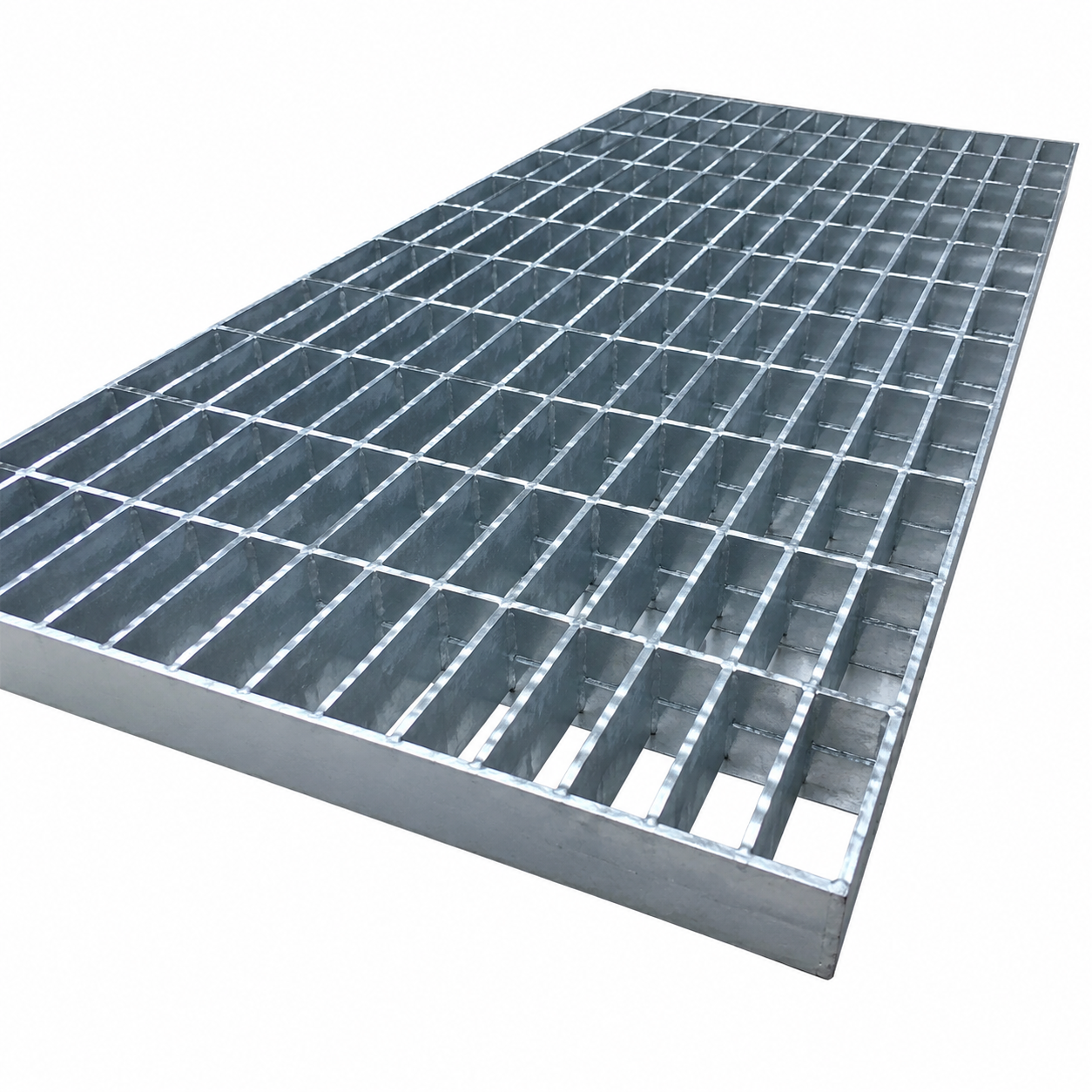

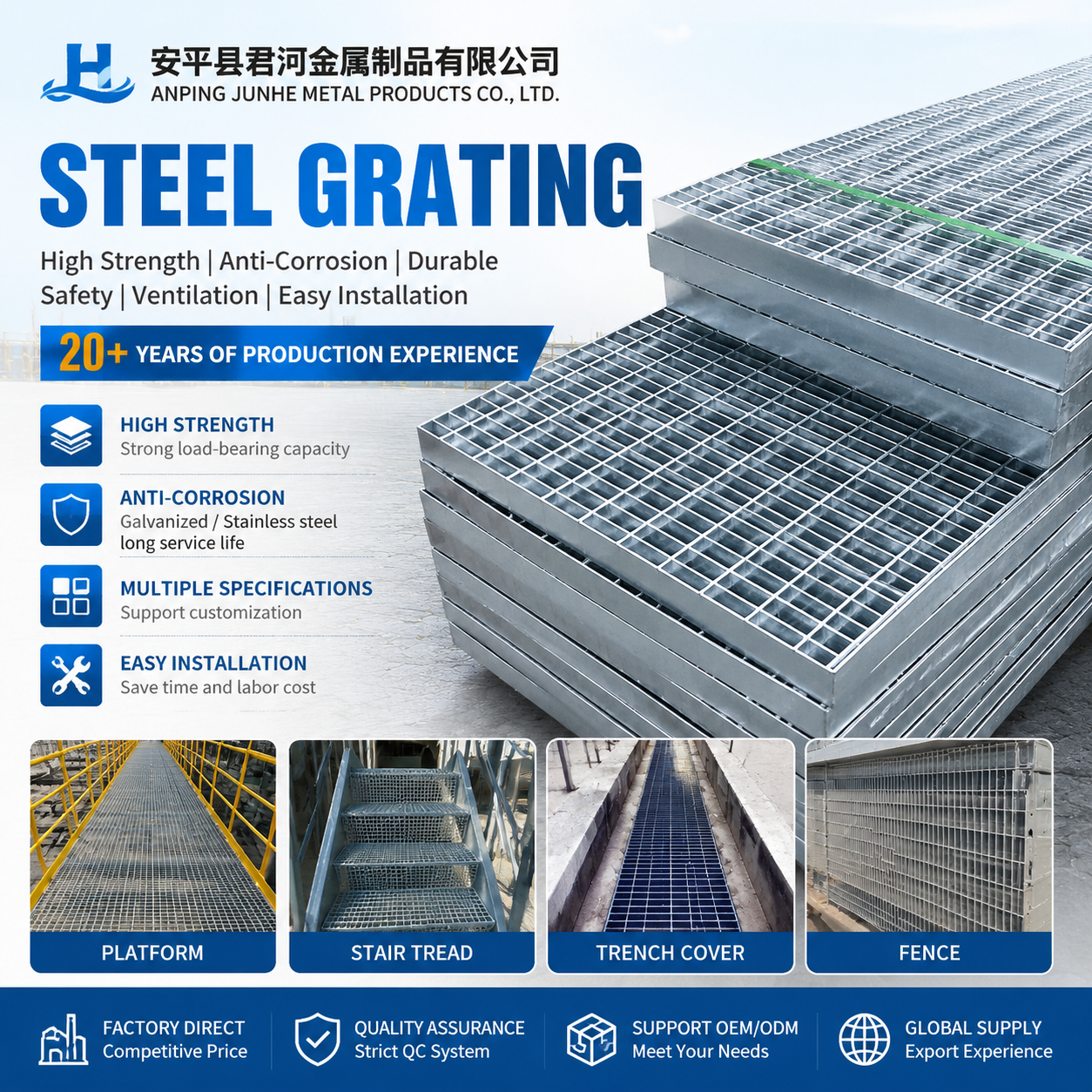

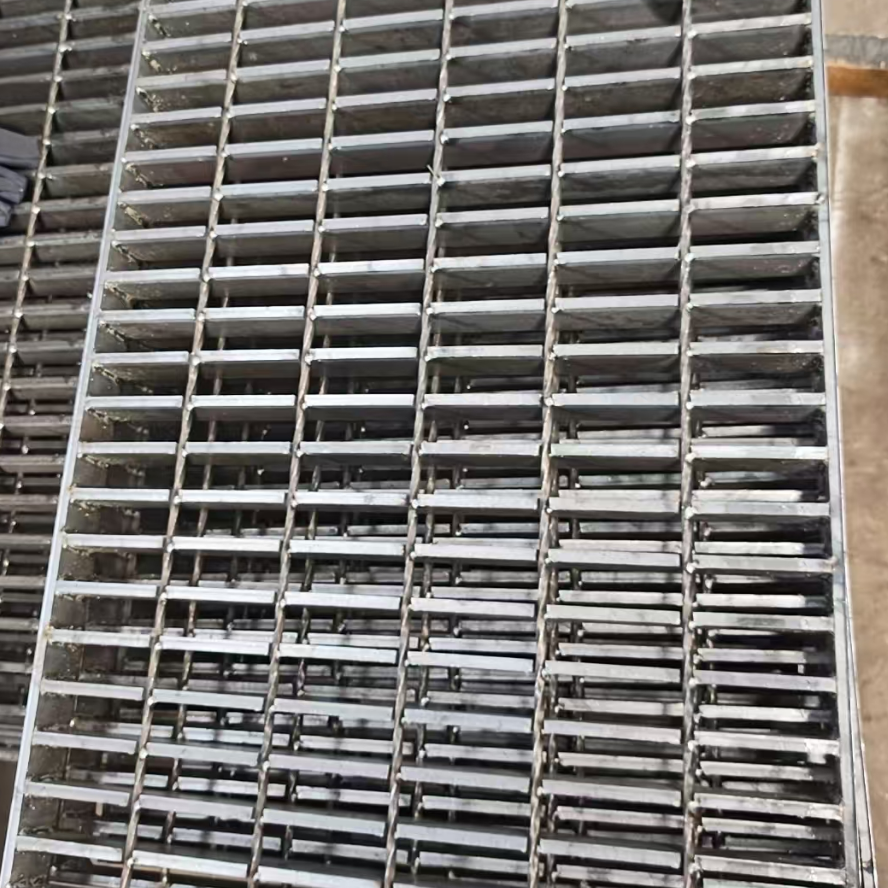

    Steel bar grating is an open-grid structural panel, manufactured by pressure welding of bearing flat bars and twisted cross bars. The common material is Q235B carbon steel with hot-dip galvanized surface for anti-corrosion. We also supply 304 / 316 stainless steel grating for heavy corrosive environment. Custom sizes and specifications are available.

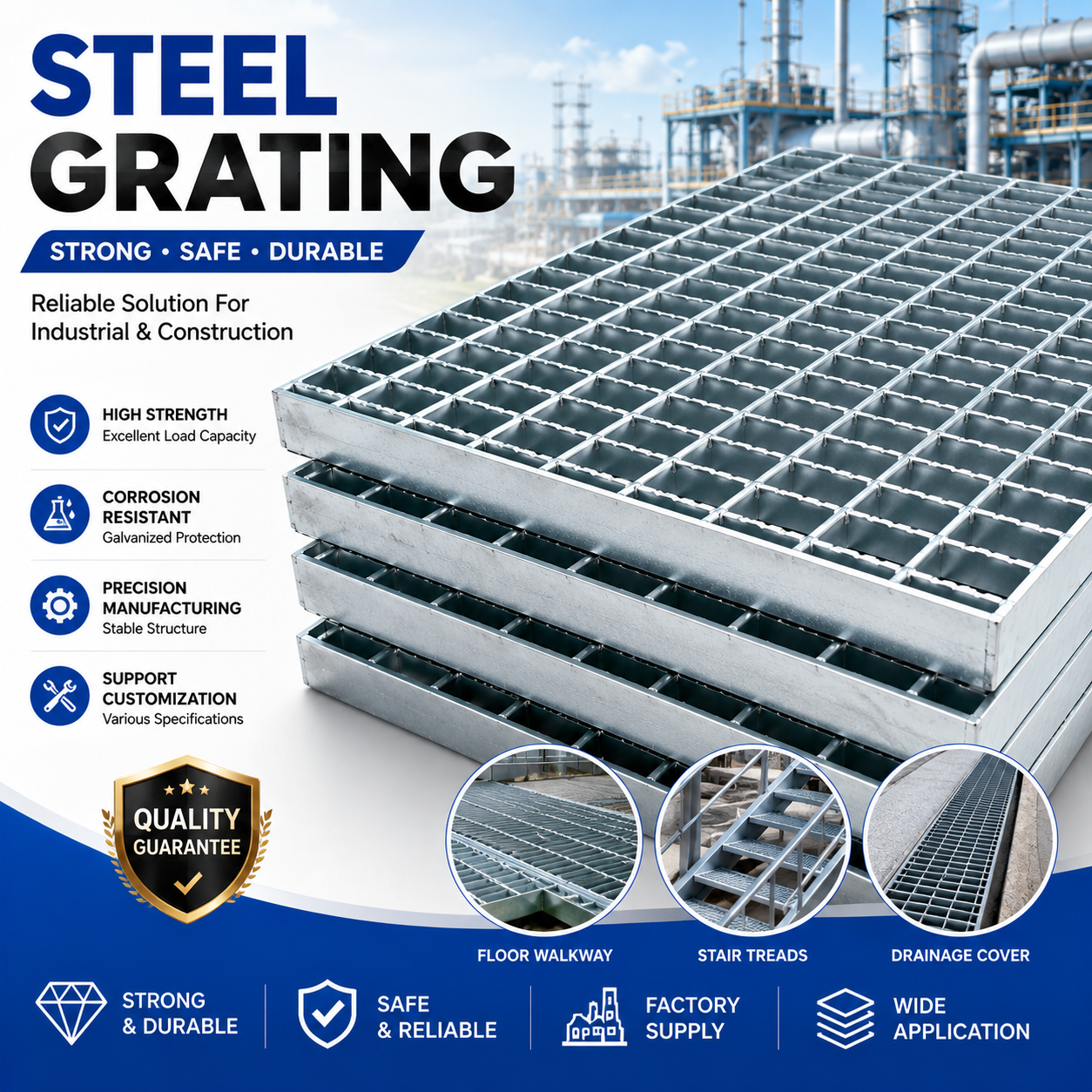

steel grating35

Steel Grating Size 1000*2000mm Or Custom made
Bearing Bar 20X5,25X3,25X4,30X3,30X4,30X5,32X3,32X5,40X5, etc
Bearing Bar Pitch(center to center) 12.5, 15,25, 30, 30.16, 50, 60, 60.32, 80, 100 mm etc
Cross bar pitch (center to center) 38, 50, 76, 100, 101.6mm etc, or customerized
Surface Treatment Hot DIP galvanizing, paint spraying or following customer requirements

Key Advantages



1. High strength & light weight

Under the same load capacity, it is much lighter than solid steel plate, saving steel cost and reducing foundation load.

2. Excellent drainage & ventilation

Open structure allows water, oil and debris to pass through freely, no water accumulation. Low wind resistance, safe for outdoor projects.

3. Anti-slip safety

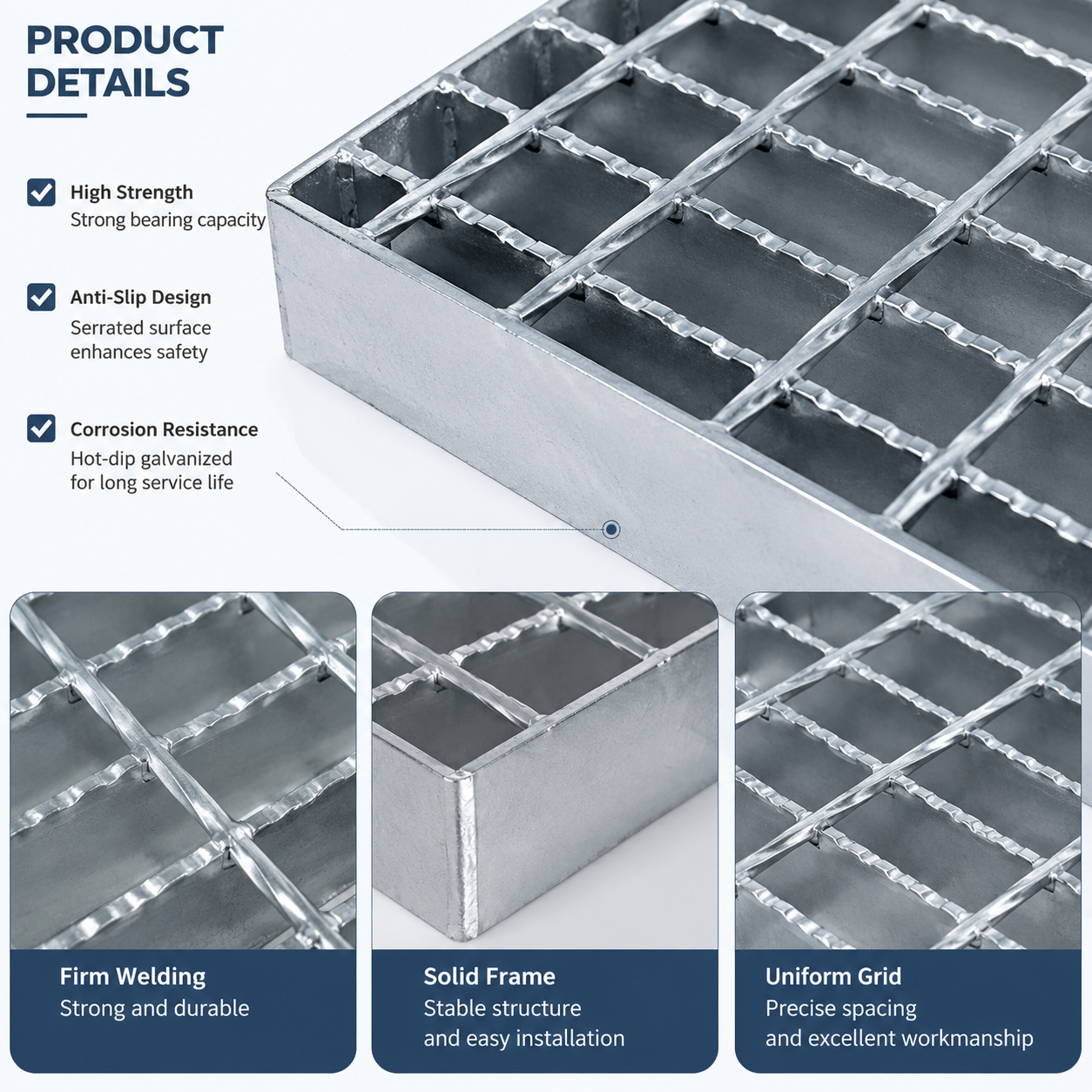

Serrated flat bar option provides good anti-slip performance on wet or oily floors, ideal for walkways and stair treads.

4. Anti-corrosion & long service life

Hot-dip galvanized treatment offers great rust resistance for outdoor use, low maintenance cost.

5. Easy installation & cutting

Light weight for fast installation, can be cut on site to fit different project sizes.

steel grating19

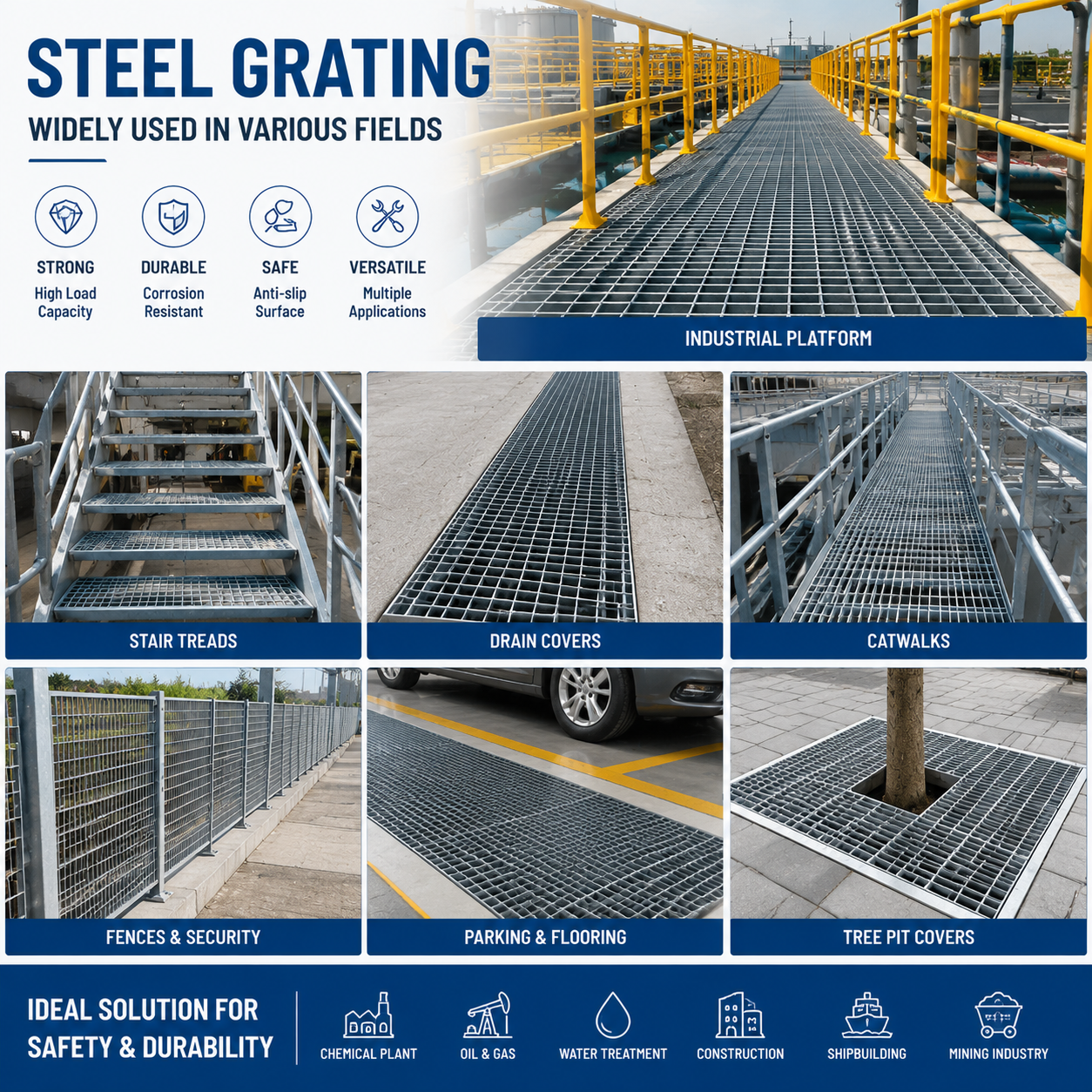

Application

steel grating33

Industrial platform, stair tread, drainage cover, trench cover, factory walkway, offshore platform, municipal engineering, fence etc.
